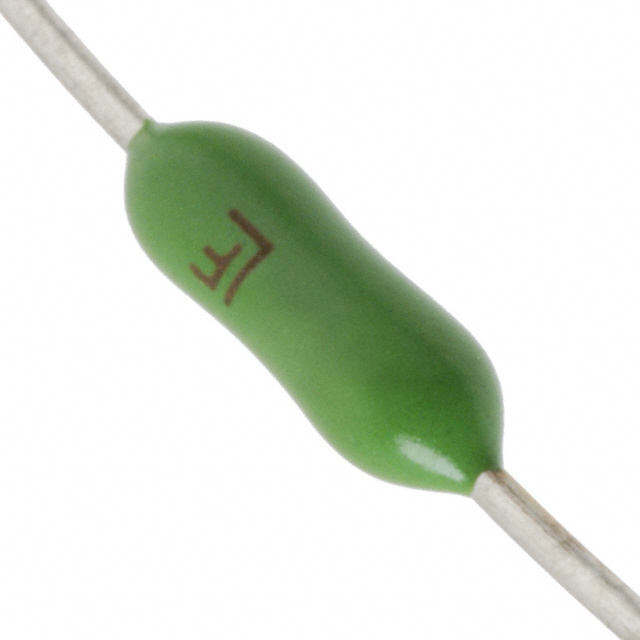

251/253系列， PICO® II ，速度非常快熔保险丝 251/253 Series, PICO® II, Very Fast-Acting Fuse
Be protected by adding a subminiature fuse developed by . This device has a current rating of 0.63. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0251.630MAT1L fuse has an axial termination style. This product is 7.11 mm long with a diameter of 2.8Max mm. The maximum AC voltage rating is 125 VAC. Its fuse is made from ceramic.
额定电压DC 125 V
额定电压AC 125 V
额定电流 630 mA
易燃性等级 UL 94 V-0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2
封装 Axial
长度 7.11 mm
直径 2.41 mm
脚长度 27.8 mm
封装 Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk, Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0251.630MAT1L Littelfuse 力特 | 当前型号 | 当前型号 |
