0466003.NR

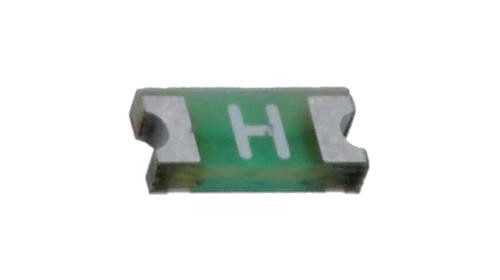

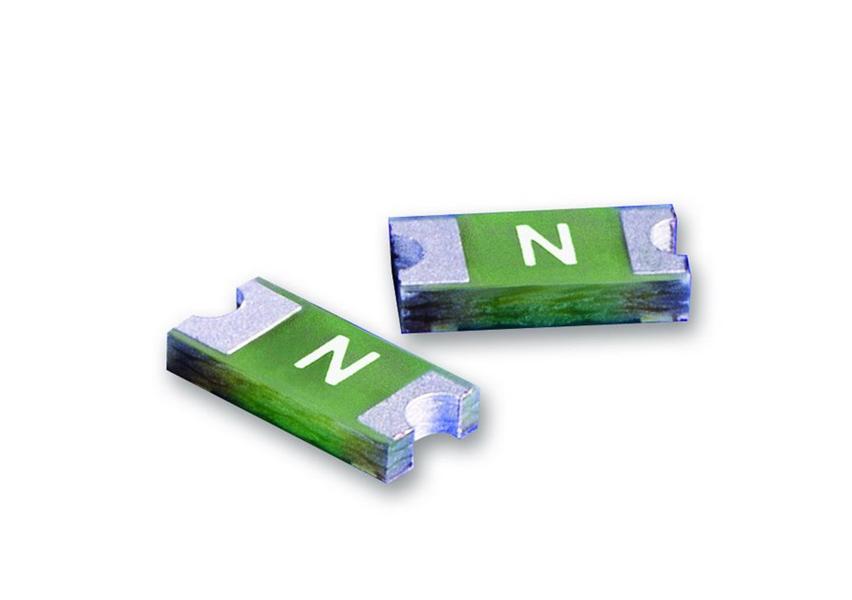

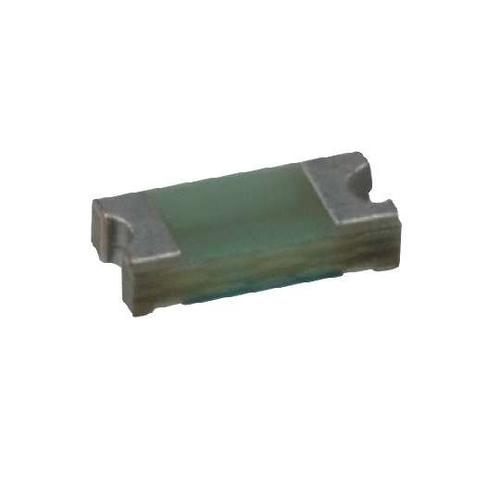

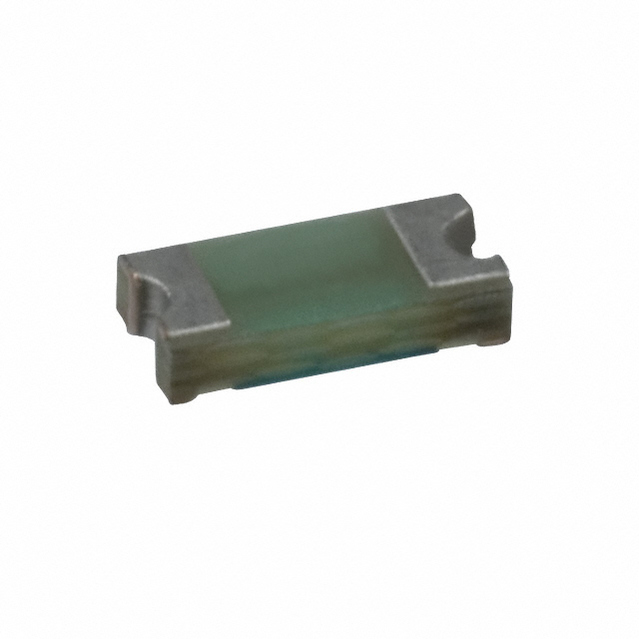

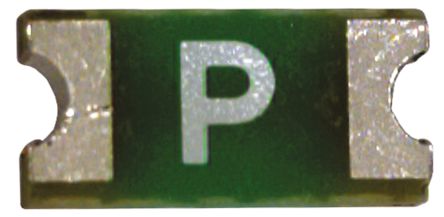

LITTELFUSE  0466003.NR  保险丝, 1206, 甚快速熔断, 3A

薄膜表面安装熔丝

极小，薄型设计

1206 外壳样式

环氧基片体，铜；镍；锡-铅帽

### 认可

经过 UL 认可和 CSA 认证

得捷:
FUSE BOARD MNT 3A 32VAC/VDC 1206

欧时:
Littelfuse 3A电流 FF熔度 表面贴装熔断器 0466003.NR, 3.175 x 1.524 x 0.585mm, 32V ac/dc

立创商城:
3A 32V 快断

贸泽:
Surface Mount Fuses 32V 3A VFA Slimline

e络盟:
LITTELFUSE  0466003.NR  保险丝, SMD, 3A, 1206, 快熔型, 整卷

艾睿:
Be protected by adding a chip 0466003.NR fuse developed by Littelfuse. This device has a current rating of 3. This fuse has an operating temperature range of -50 °C to 90 °C. It has 2 terminals. The 0466003.NR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC. This product is 3.18 mm long, 0.58 mm tall and 1.52 mm deep.

Allied Electronics:
FUSE BOARD MNT 3A 32VAC/VDC 1206

Chip1Stop:
Fuse Chip Very Fast Acting 3A 32V SMD Solder Pad 1206 T/R

Verical:
Fuse Chip Very Fast Acting 3A 32V SMD Solder Pad 1206 T/R CSA

Newark:
# LITTELFUSE  0466003.NR  Fuse, Surface Mount, 466 Series, 3 A, 32 VAC, 32 VDC, Very Fast Acting, 1206

儒卓力:
**3A 32V very fast 1206 SMD SLIM **

Win Source:
FUSE BOARD MNT 3A 32VAC/VDC 1206
