318分之312系列无铅3AG ，快熔保险丝 312/318 Series Lead-Free 3AG, Fast-Acting Fuse

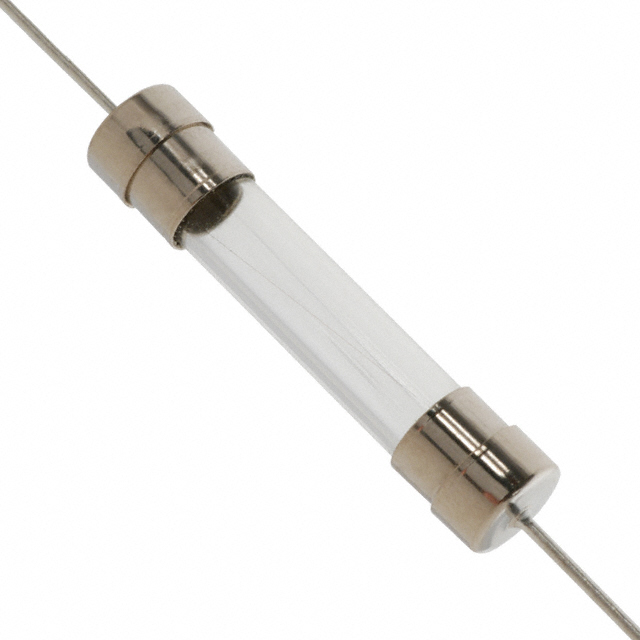

A great alternative to a circuit breaker, this a miniature fuse from will protect your electronics. This device has a current rating of 3. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0318003.HXP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from glass. This product is 32.72 mm long with a diameter of 6.99 mm.
额定电压DC 250 V
额定电压AC 250 V
额定电流 3 A
电阻 0.0424 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
长度 32.385 mm
直径 6.99 mm
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0318003.HXP Littelfuse 力特 | 当前型号 | 当前型号 |
0312003.HXP 力特 | 类似代替 | 0318003.HXP和0312003.HXP的区别 |
BK/AGC-3-R 库柏 | 类似代替 | 0318003.HXP和BK/AGC-3-R的区别 |
AGC-3-R 伊顿巴斯曼 | 功能相似 | 0318003.HXP和AGC-3-R的区别 |
