二百三十分之二百二十九系列无铅2AG , SLO- Blo®保险丝和指示SLO- Blo®保险丝 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse
The 2AG fuse provides the same performance characteristics as the universal standard 3AG design in less than one-third the space. These subminiature fuses offer top quality, reliability and space-saving protection for your new designs. Available with pigtail leads for direct soldering or for use with #111501 mating PCB fuse clips. The 2AG Series is UL and CSA Approved.
艾睿:

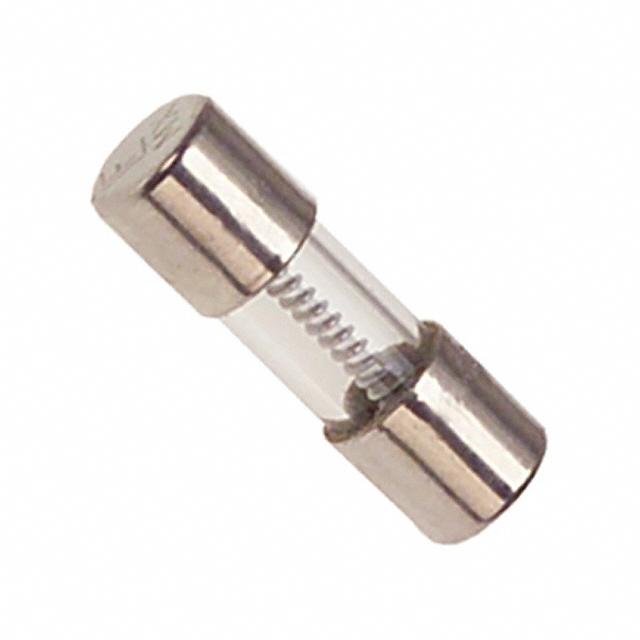

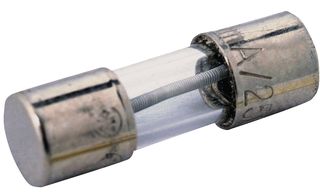

A great alternative to a circuit breaker, this a subminiature 0229004.HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 4. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0229004.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 14.48 mm long with a diameter of 4.5 mm. Its fuse is made from glass. The maximum AC voltage rating is 125 VAC.
Allied Electronics:
Fuse; Cylinder; Slow Blow/Time Lag; 4A; Sz 2AG; Supplemental; Dims 0.177x0.57"; Glass
富昌:
229 系列 慢断 125 V 4 A 14.48 x 4.5 mm 玻璃管 保险丝
Chip1Stop:
Fuse Subminiature Slow Blow Acting 4A 125V Holder Cartridge 5 X 15mm Glass Bulk
Verical:
Fuse Subminiature Slow Blow Acting 4A 125V Holder Cartridge 5 X 15mm Glass Bulk CE/CSA/PSE/UL
Newark:
# LITTELFUSE 0229004.HXP Fuse, Cartridge, 229 Series, 4 A, 125 V, 5mm x 15mm, 400 A
额定电压DC 125 V
额定电压AC 125 V
额定电流 4 A
电阻 0.0258 Ω
电阻DC) 0.0256 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 VAC
额定电压AC Max 125 V
引脚数 2
封装 2AG, 5mm x 15mm
长度 14.48 mm
直径 4.50 mm
封装 2AG, 5mm x 15mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0229004.HXP Littelfuse 力特 | 当前型号 | 当前型号 |
0229004.MXP 力特 | 类似代替 | 0229004.HXP和0229004.MXP的区别 |
