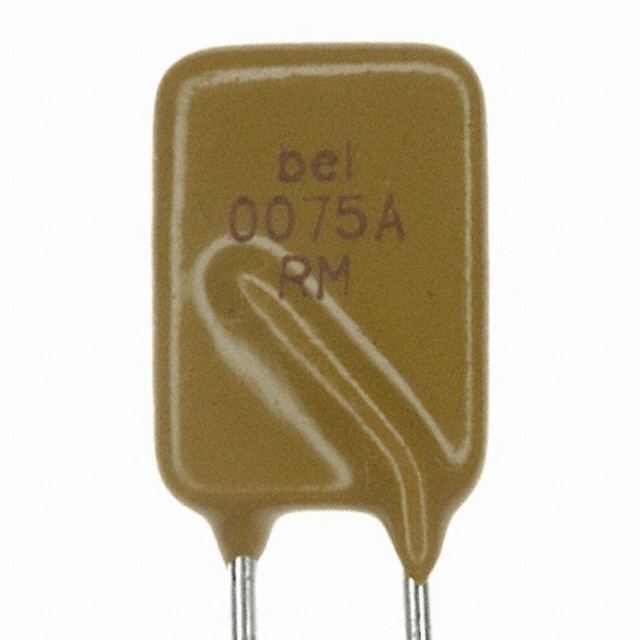

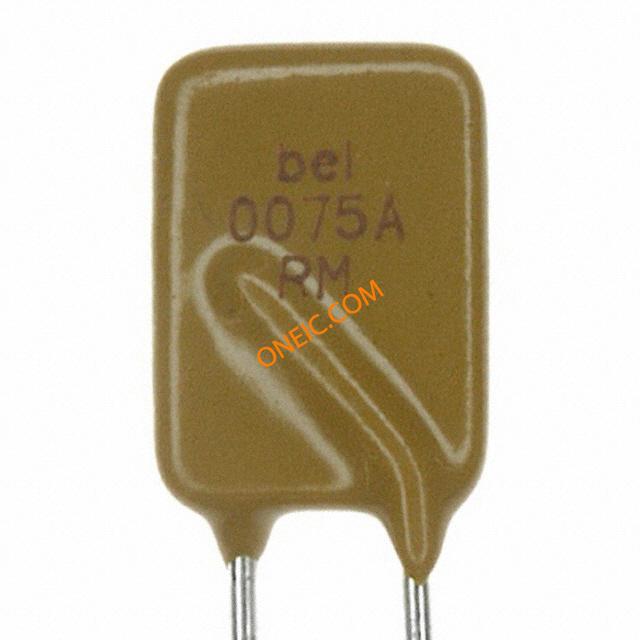

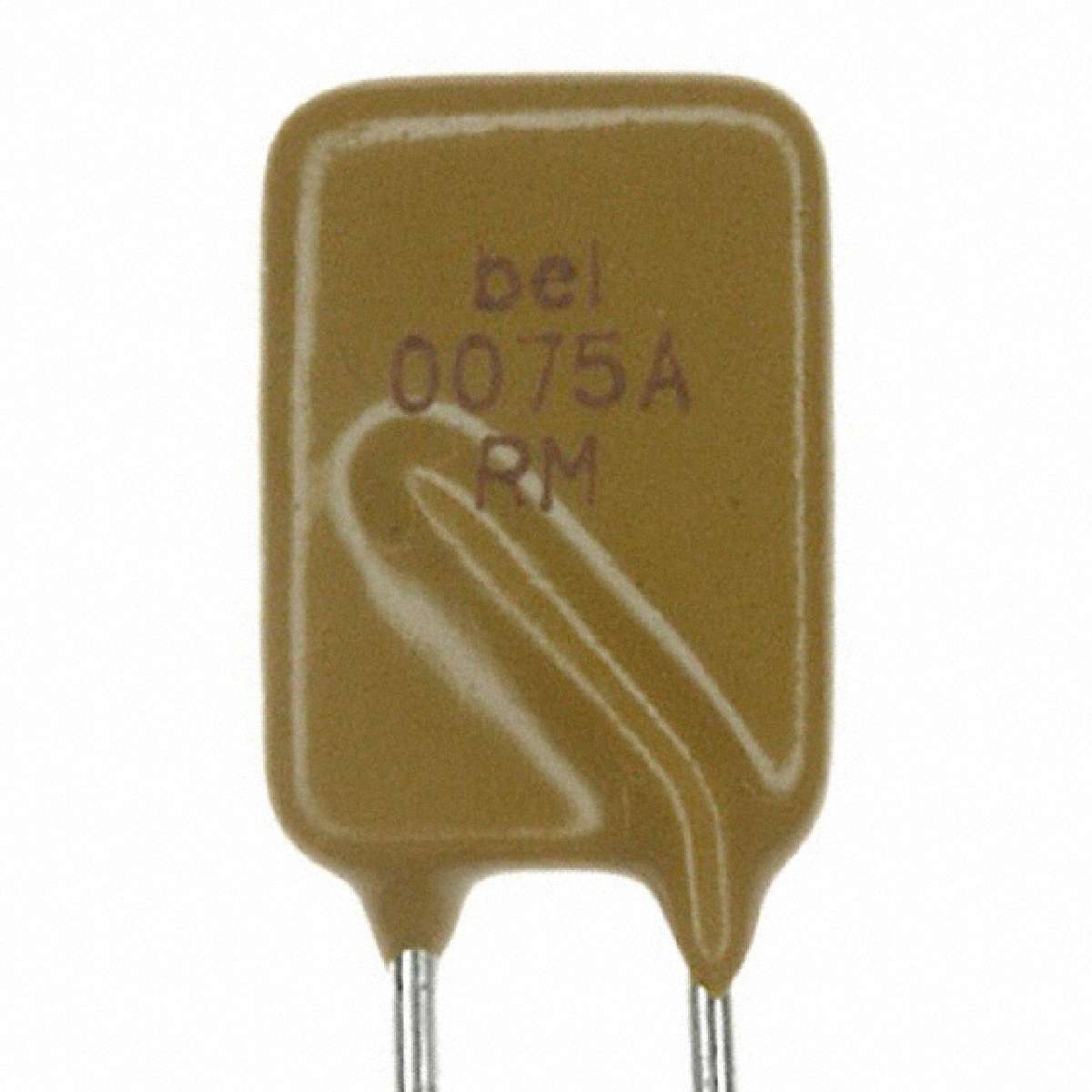

PTC Resettable Fuse 0.75Ahold 1.5Atrip 120VDC/120VAC 7.5A 2.64W 15s 0.25Ω Radial 10.9 X 4.1 X 17mm Bulk

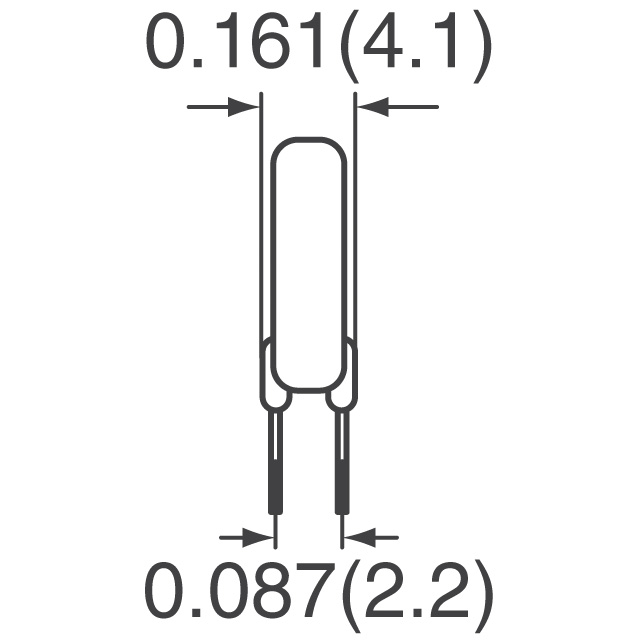

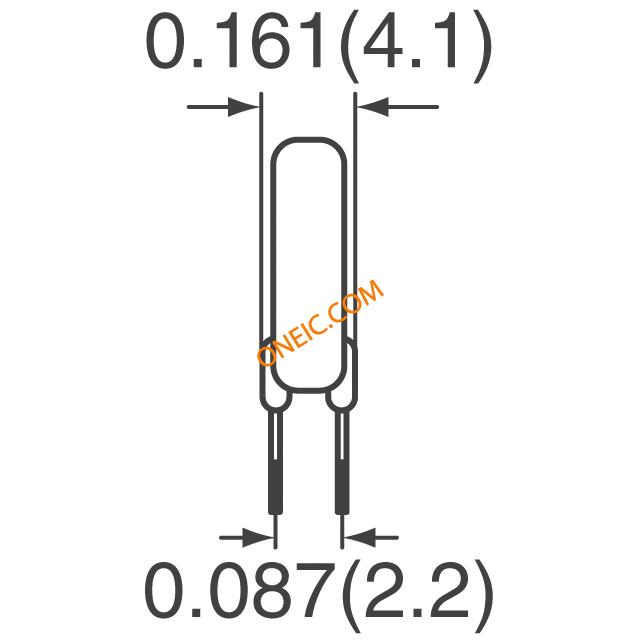

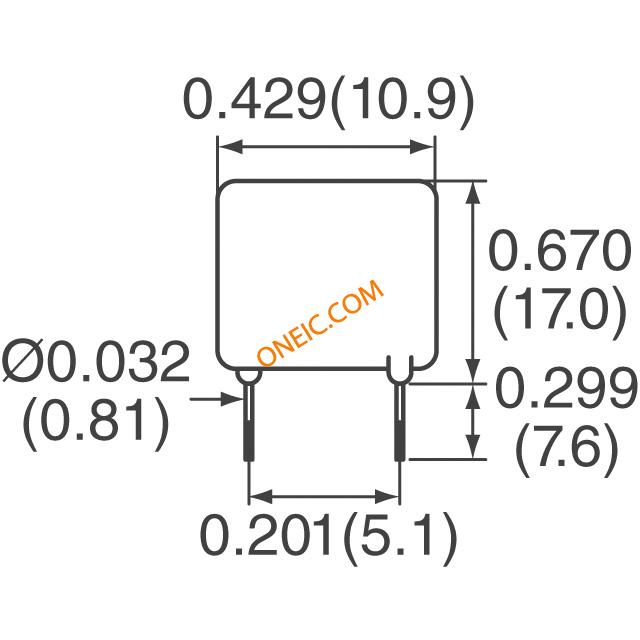

Avoid delays in resuming normal operation with this PTC resettable fuse from Bel Fuse. This device has a maximum current rating of 7.5. This part has a lead diameter of 0.81 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1typ mm. This product is 10.9Max mm long, 17Max mm tall and 4.1Max mm deep.
跳闸时间 15 s
耗散功率 2.64 W
保持电流 0.75 A
跳闸电流 1.5 A
额定电流Max 7.5 A
保持电流Max 750 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 10.9 mm
宽度 4.1 mm
高度 17 mm
封装 Radial, Disc
厚度 4.1 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZRM0075AF1E BEL Fuse 百富电子 | 当前型号 | 当前型号 |
LVRL075S 力特 | 功能相似 | 0ZRM0075AF1E和LVRL075S的区别 |
