Conn; Term Blk; Test Disconnect; 2 Connection; 20 to 8AWG; 400V; 57A

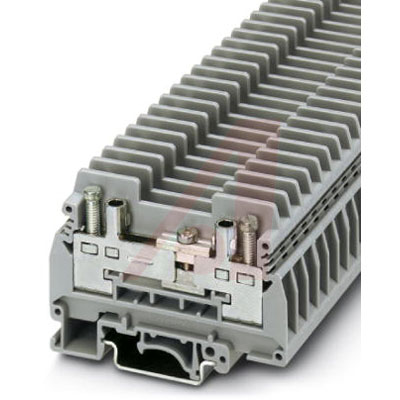

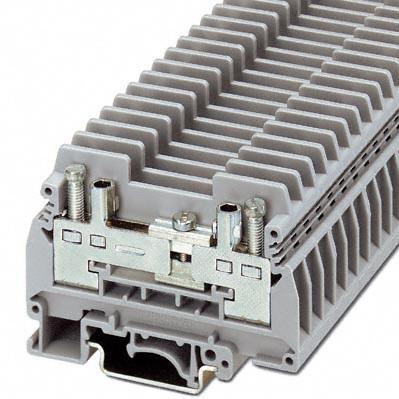

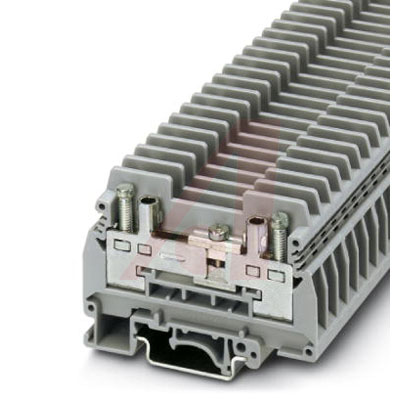

* Easy and clear testing in current transformer secondary circuits can be performed using the test disconnect terminal blocks of the URTK/S range
* On both sides of the disconnect point, the terminal block has a test socket which can also be used to switch across to neighboring terminal blocks
得捷:
CONN TERM BLK DISCONNECT 8-26AWG
艾睿:
Connect test equipment together with other components by using this 0311087 PCB terminal block from Phoenix Contact. This F connector has 2 F contacts. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 400 V. It has a female type gender. This device has a maximum current rating of 57 A. 0311087 is housed in polyamide. Its wire is 8-26 AWG. This product is 72 mm long, 59 mm tall and 8.2 mm deep. It uses the screw termination method.
Allied Electronics:
Conn; Term Blk; Test Disconnect; 2 Connection; 20 to 8 AWG; 400 V; 57 A
Verical:
Conn Terminal Block F 2 POS Screw ST G DIN Rail/T DIN Rail 41A
MASTER:
Test disconnect terminal block - with two test sockets for 4 mm test plugs - or for receiving bridge bars or screw bridges - connection method: Screw connection - cross section: 0.5 mm² - 10 mm² - AWG: 20 - 10 - width: 8.2 mm - mounting type: NS 35/7,5 -
Online Components:
Conn Terminal Block F 2 POS Screw ST G DIN Rail/T DIN Rail 41A
Electro Sonic:
Test disconnect terminal block - with two test sockets for 4 mm test plugs - or for receiving bridge bars ...
触点数 2
线规 8AWG ~ 26AWG
额定电流 57 A
排数 2
电路数 1
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 41 A
额定电压Max 400 V
额定电压 400 V
工作电压Max 400 V
安装方式 DIN Rail, Screw
长度 72 mm
宽度 8.2 mm
高度 59 mm
外壳颜色 Gray
颜色 Gray
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536904000
