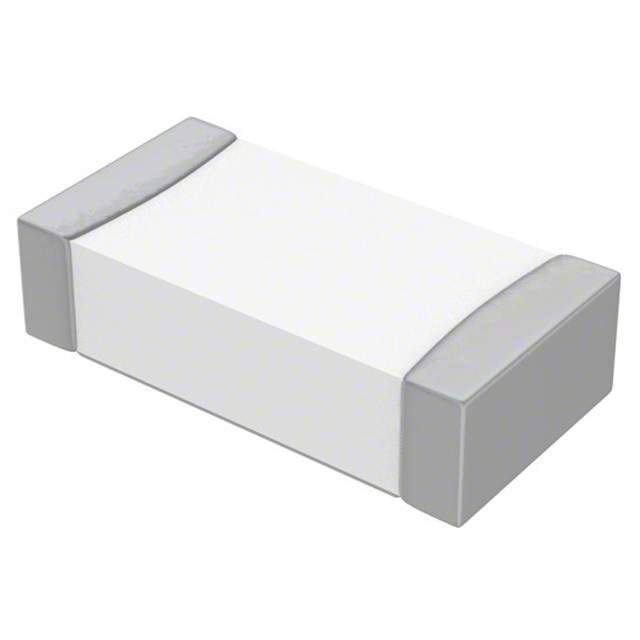

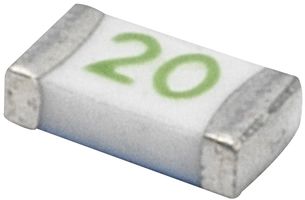

LITTELFUSE 0501020.WR 表面安装保险丝, 快熔型, 20A, 1206
Be protected by adding a chip fuse developed by . This device has a maximum power dissipation of 1.1871Typ W. This device has a current rating of 20. Its maximum power dissipation is 1.1871Typ W. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0501020.WR fuse has a solder pad termination style. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Its fuse is made from ceramic. The maximum DC voltage rating is 24 VDC. This product is 3.2 mm long, 0.84 mm tall and 1.63 mm deep.
额定电压DC 32 V
额定电流 20 A
耗散功率 1.1776 W
电阻 0.002 Ω
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1.1776 W
额定电压 24 V
额定电压DC Max 32 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.63 mm
高度 0.835 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0501020.WR Littelfuse 力特 | 当前型号 | 当前型号 |
TR/3216FF20-R 伊顿巴斯曼 | 功能相似 | 0501020.WR和TR/3216FF20-R的区别 |
