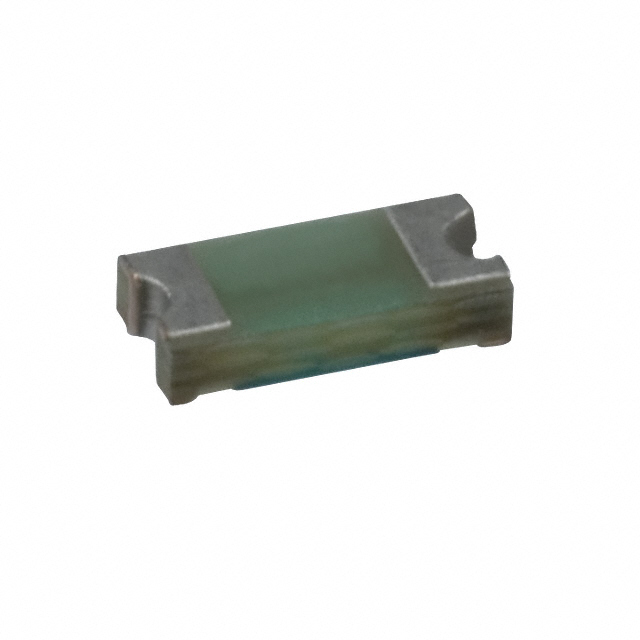

表面贴装保险丝薄膜\u003e 1206尺寸\u003e特快熔断\u003e 466系列 Surface Mount Fuses Thin Film > 1206 Size > Very Fast-Acting > 466 Series
Be protected by adding a chip fuse developed by . This device has a current rating of 0.2. This device has a maximum power dissipation of 0.0509Typ W. Its maximum power dissipation is 0.0509Typ W. This fuse has an operating temperature range of -50 °C to 90 °C. It has 2 terminals. The 0466.200NRHF fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 3.18 mm long, 0.58 mm tall and 1.52 mm deep. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC.
额定电压DC 125 V
额定电压AC 125 V
额定电流 0.2 A
耗散功率 0.0509 W
电阻 1.1 Ω
工作温度Max 90 ℃
工作温度Min -50 ℃
耗散功率Max 0.0509 W
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.18 mm
宽度 1.52 mm
高度 0.58 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0466.200NRHF Littelfuse 力特 | 当前型号 | 当前型号 |
0466.200NR 力特 | 完全替代 | 0466.200NRHF和0466.200NR的区别 |
