0719139

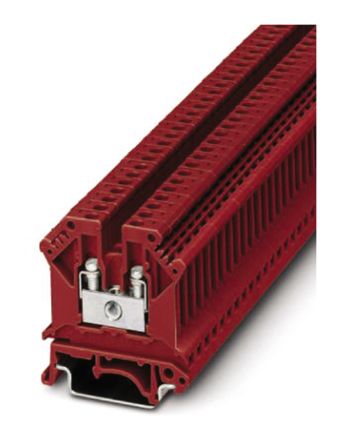

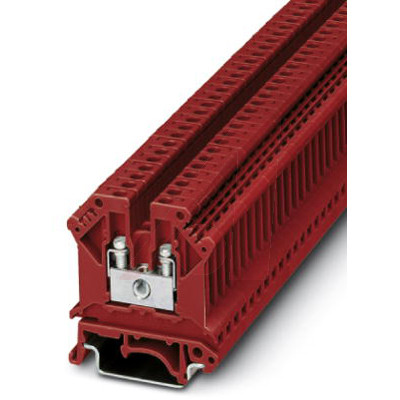

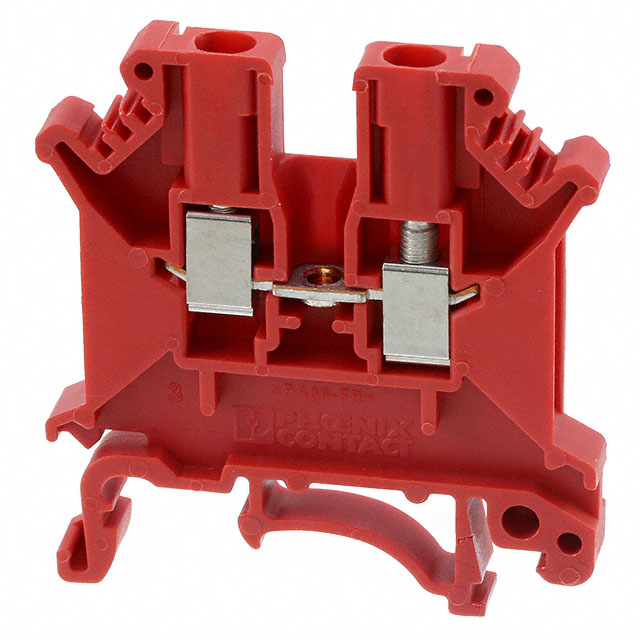

Phoenix Contact UK 系列 红色 馈通端子块 0719139, 24A, 800 V

端子块 2 位置 馈通式 红色 12-28 AWG

欧时:
0719139 - Phoenix Contact 菲尼克斯 UK 系列 红色 馈通端子块

得捷:
CONN TERM BLK FEED THRU 12-28AWG

艾睿:
This feed-through modular terminal blocks 0719139 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. This F connector has 2 contacts that are plated with tin. This is a 2-row connector. It has a maximum voltage rating of 800 V. It has a female type gender. 0719139 is housed in polyamide. This device has a maximum current rating of 32 A. This product is 42.5 mm long, 52 mm tall and 5.2 mm deep. It uses the screw termination method. Its wire is 12-24 AWG.

Allied Electronics:
Terminal Block; Feed-Through; Screw conn; W:5.2 mm; red; UK; 3 N RD

MASTER:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 24 A - connection method: Screw connection - number of connections: 2 - cross section: 0.2 mm² - 4 mm² - AWG: 24 - 12 - width: 5.2 mm - color: red - mounting type: NS 35/7,5 - NS 35/15

Online Components:
Conn Feed-Through Modular Terminal Blocks F 2 POS Screw G DIN Rail/T DIN Rail 32A

Electro Sonic:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 24 A - connection method: Screw connection - number ...
