LITTELFUSE 04671.75NR 保险丝, SMD, 32V, 甚快速熔断, 1.75A
1.75A 32V AC 32V DC Fuse Board Mount Cartridge Style Excluded Surface Mount 0603 1608 Metric
得捷:
FUSE BOARD MOUNT 1.75A 32VAC/VDC
e络盟:
表面安装保险丝, 1.75 A, 467系列, 32 VAC, 32 VDC, 非常快速反应, 0603
艾睿:
Be protected by adding a chip 04671.75NR fuse developed by Littelfuse. Its maximum power dissipation is 0.1378 W. This device has a current rating of 1.75. This device has a maximum power dissipation of 0.1378 W. This fuse has an operating temperature range of -55 °C to 90 °C. It has 2 terminals. The 04671.75NR fuse has a solder pad termination style. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC. This product is 1.6 mm long, 0.31 mm tall and 0.81 mm deep.
Chip1Stop:
Fuse Chip Very Fast Acting 1.75A 32V SMD Solder Pad 0603 T/R
Win Source:
FUSE BOARD MOUNT 1.75A 32VAC/VDC
额定电压DC 32 V
额定电压AC 32 V
额定电流 1.75 A
电阻 0.028 Ω
工作温度Max 90 ℃
工作温度Min -55 ℃
耗散功率Max 0.1378 W
额定电压 32 V
额定电压DC Max 32 V
额定电压AC Max 32 V
安装方式 Surface Mount
封装公制 1608
封装 0603

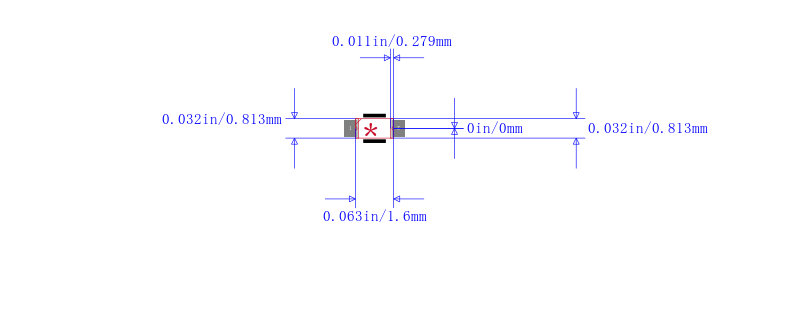

长度 1.6 mm
宽度 0.813 mm
高度 0.305 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
04671.75NR Littelfuse 力特 | 当前型号 | 当前型号 |
04671.75NRHF 力特 | 完全替代 | 04671.75NR和04671.75NRHF的区别 |
04341.75NRP 力特 | 完全替代 | 04671.75NR和04341.75NRP的区别 |
04671.75 力特 | 功能相似 | 04671.75NR和04671.75的区别 |
