自恢复保险丝—PPTC
Avoid delays in resuming normal operation with this PTC resettable fuse from Bel Fuse. This part has a lead diameter of 0.81 mm. This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product"s terminal pitch is 10.2typ mm. This product is 3.1Max mm deep.
得捷:
PTC RESET FUSE 90V 3.75A RADIAL
立创商城:
0ZRC0375FF1A
贸泽:
自恢复保险丝—PPTC
艾睿:
Avoid delays in resuming normal operation with this 0ZRC0375FF1A PTC resettable fuse from Bel Fuse. This part has a lead diameter of 0.81 mm. This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product&s;s terminal pitch is 10.2typ mm. This product is 3.1Max mm deep.
安富利:
PTC Resettable Fuse 40A 90VDC Bulk
Chip1Stop:
PTC Resettable Fuse 3.75Ahold 7.5Atrip 90VDC 40A 3.2W 0.03Ohm Radial 28.5 X 3.1mm Bulk
跳闸时间 24 s
耗散功率 3.2 W
电阻 0.08 Ω
保持电流 3.75 A
跳闸电流 7.5 A
额定电流Max 40 A
保持电流Max 3.75 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 90 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc

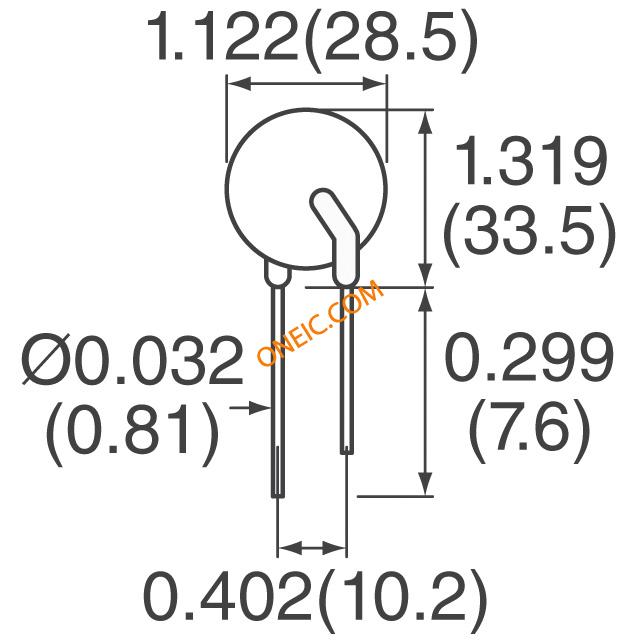

长度 28.5 mm

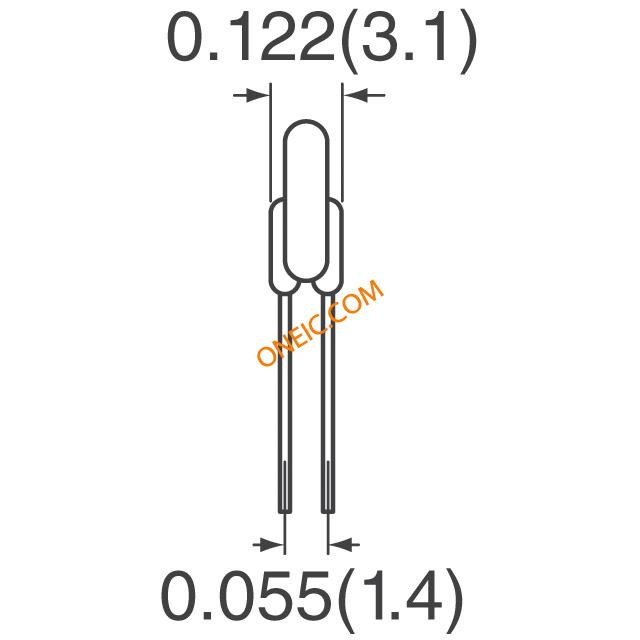

宽度 3.1 mm
高度 28.5 mm
封装 Radial, Disc
厚度 3.1 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZRC0375FF1A BEL Fuse 百富电子 | 当前型号 | 当前型号 |
RXE375 力特 | 类似代替 | 0ZRC0375FF1A和RXE375的区别 |
