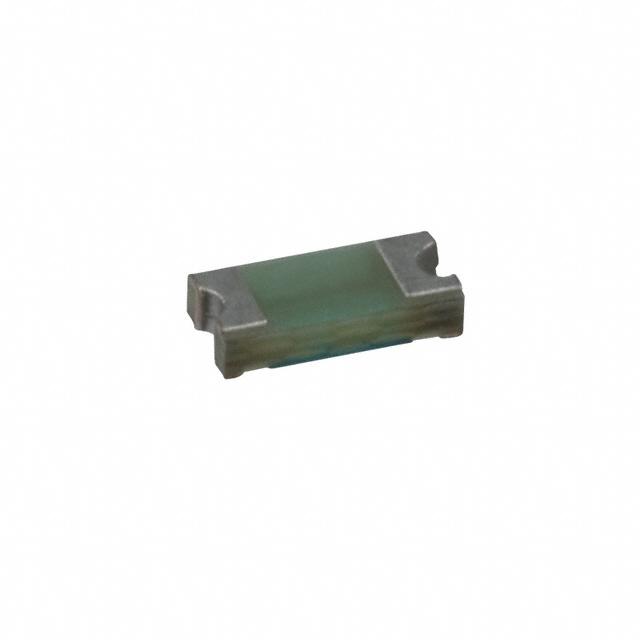

LITTELFUSE 046701.5NR 保险丝, 0603, 甚快速熔断, 1.5A
A great alternative to a circuit breaker, this a chip fuse from will protect your electronics. Its maximum power dissipation is 0.1217 W. This device has a maximum power dissipation of 0.1217 W. This device has a current rating of 1.5. This fuse has a minimum operating temperature of -55 °C and a maximum of 90 °C. It has 2 terminals. The 046701.5NR fuse has a solder pad termination style. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 1.6 mm long, 0.31 mm tall and 0.81 mm deep. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC.
额定电压DC 65 V
额定电压AC 32 V
额定电流 1.5 A
耗散功率 0.1217 W
电阻 0.041 Ω
工作温度Max 90 ℃
工作温度Min -55 ℃
耗散功率Max 0.1217 W
额定电压 32 V
额定电压DC Max 32 V
额定电压AC Max 32 V
安装方式 Surface Mount
引脚数 2

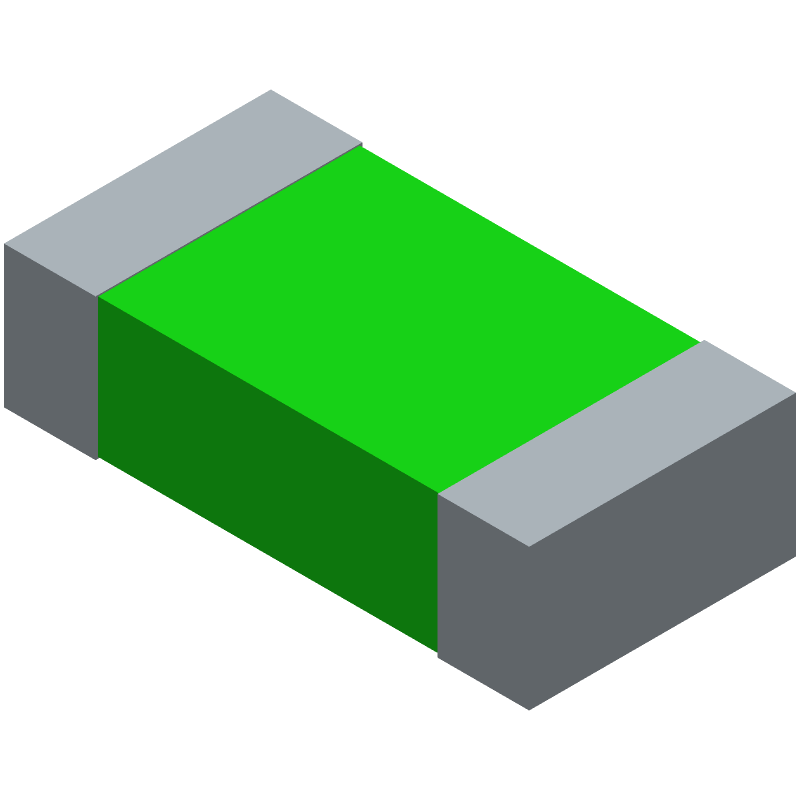

封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.813 mm
高度 0.305 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
046701.5NR Littelfuse 力特 | 当前型号 | 当前型号 |
046701.5NRHF 力特 | 类似代替 | 046701.5NR和046701.5NRHF的区别 |
0603SFF150F/32-2 力特 | 功能相似 | 046701.5NR和0603SFF150F/32-2的区别 |
043401.5NRP 力特 | 功能相似 | 046701.5NR和043401.5NRP的区别 |
