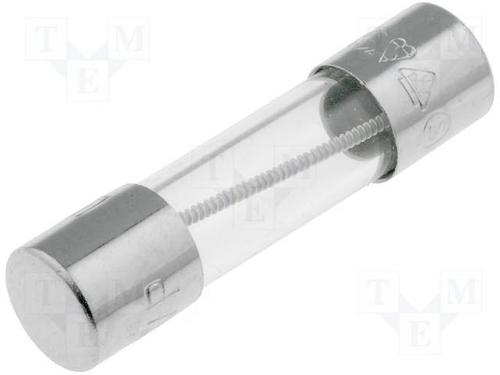

213 系列 延时 250 V 6.3 A 5 x 20 mm 玻璃管 保险丝
Be protected by adding a miniature fuse developed by . Its maximum power dissipation is 1.6Typ W. This device has a current rating of 6.3. This device has a maximum power dissipation of 1.6Typ W. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 021306.3MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 5.2 mm. Its fuse is made from glass.
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 6.3 A
耗散功率 1.6 W
电阻 0.0095 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 1.6 W
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
直径 5.00 mm
封装 5mm x 20mm
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
021306.3MXP Littelfuse 力特 | 当前型号 | 当前型号 |
021306.3MXEP 力特 | 完全替代 | 021306.3MXP和021306.3MXEP的区别 |
021306.3MXBP 力特 | 完全替代 | 021306.3MXP和021306.3MXBP的区别 |
021306.3MRET1P 力特 | 完全替代 | 021306.3MXP和021306.3MRET1P的区别 |
