0314002.HXP

324分之314系列无铅3AB ，快熔保险丝 314/324 Series Lead-free 3AB, Fast-acting Fuse

.

*Blow Time:** 100% four hour minimum; 135% one hour maximum; 200% 15 second maximum 1⁄8-12 A; 30 second maximum 15-30 A. 11⁄4 × 1⁄4". UL listed thru 15 amps. Certified by CSA thru 15 amps. UL recognized, 20-30 A.

贸泽:
保险丝管 250V 2A Fast Acting

艾睿:

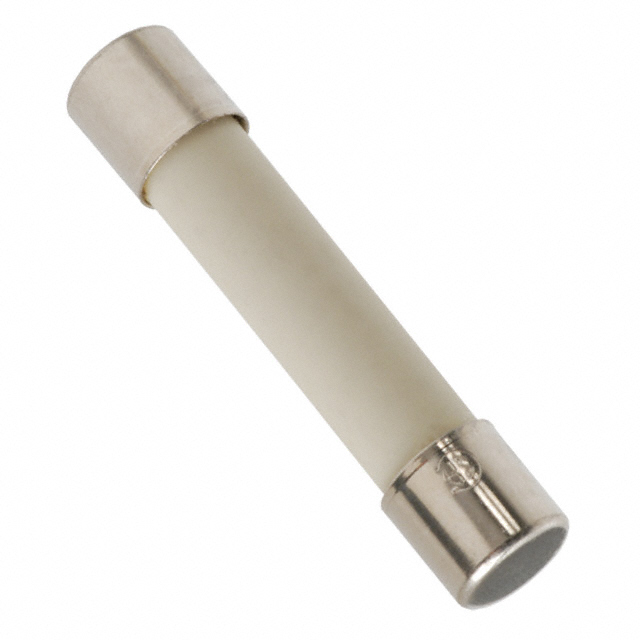

A great alternative to a circuit breaker, this a miniature 0314002.HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 2. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0314002.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from ceramic. This product is 31.75 mm long with a diameter of 6.35 mm.

Allied Electronics:

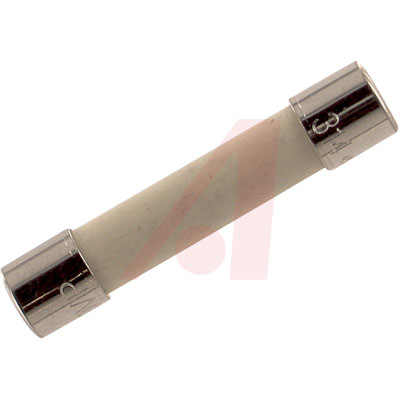

Fuse; Cylinder; Fast Acting; 2A; 3AB; Supplemental; 0.25x1.25 in..; Ceramic; 250VAC

TME:

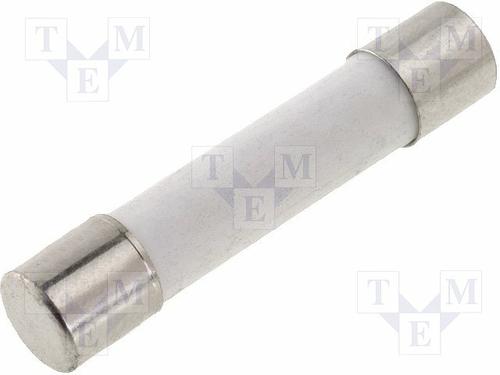

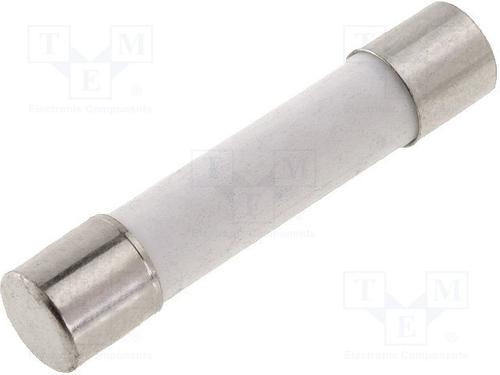

Fuse: fuse; quick blow; ceramic; 2A; 250VAC; 6,3x32mm; brass

Verical:
Fuse Miniature Fast Acting 2A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/PSE/UL/cULus

Newark:
# LITTELFUSE  0314002.HXP  Fuse, Cartridge, 314 Series, 2 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 100 A

儒卓力:
**2A 250V fast 6.3x32 ceramic **
