044707.5YXP

044707.5YXP图片1
044707.5YXP图片2
044707.5YXP图片3
044707.5YXP图片4
044707.5YXP概述

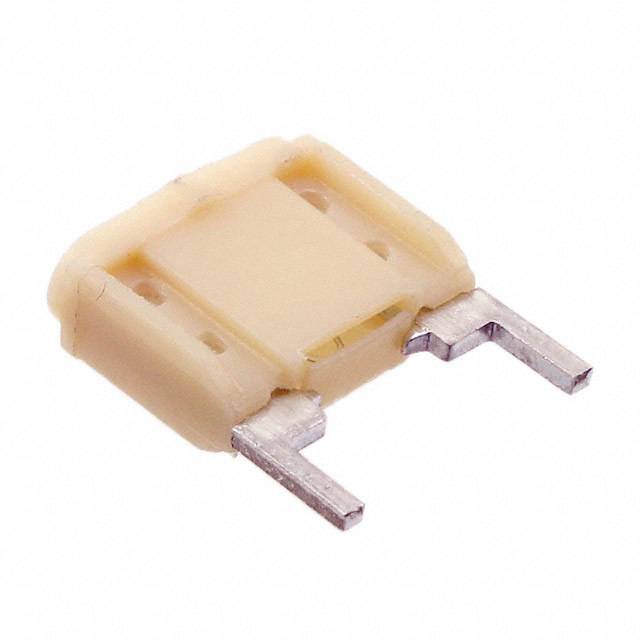

447 Series Fast-Acting 350V 7.5A 8.76 x 10.92mm Through Hole EBF Fuse

Be protected by adding a chip fuse developed by . This device has a current rating of 7.5. This fuse has an operating temperature range of -40 °C to 125 °C. It has 2 terminals. The 044707.5YXP fuse has a solder pad termination style. This product comes packaged in bulk, so the parts will be stored loosely. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 350 VAC. This product is 10.92 mm long, 8.76 mm tall and 3.81 mm deep. Its fuse is made from plastic.

044707.5YXP中文资料参数规格
技术参数

额定电压DC 125 V

额定电压AC 350 V

额定电流 7.5 A

电阻 0.011 Ω

工作温度Max 125 ℃

工作温度Min -40 ℃

额定电压 350 V

额定电压AC Max 350 V

封装参数

引脚数 2

封装 SMD

外形尺寸

长度 10.92 mm

宽度 8.76 mm

高度 8.76 mm

封装 SMD

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买044707.5YXP
型号: 044707.5YXP
描述:447 Series Fast-Acting 350V 7.5A 8.76 x 10.92mm Through Hole EBF Fuse
替代型号044707.5YXP
型号/品牌 代替类型 替代型号对比

044707.5YXP

Littelfuse 力特

当前型号

当前型号

044607.5ZRP

力特

类似代替

044707.5YXP和044607.5ZRP的区别
