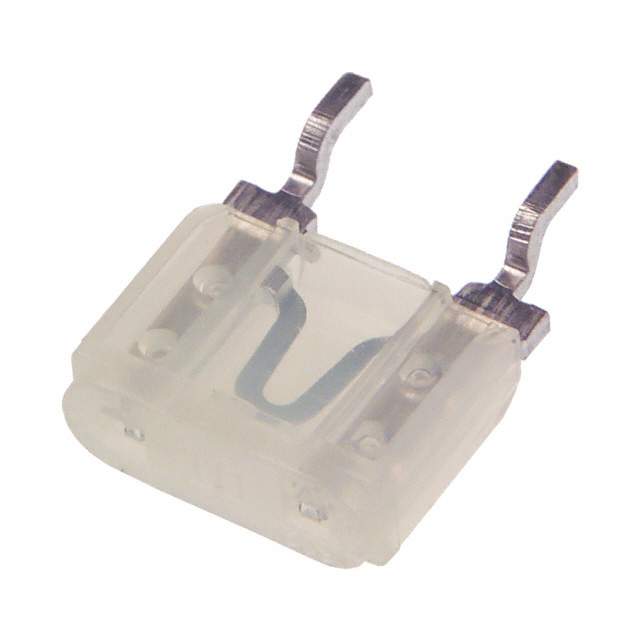

LITTELFUSE 0446010.ZRP 保险丝, SMD, 10A, 快熔型, 整卷
A great alternative to a circuit breaker, this a chip fuse from will protect your electronics. This device has a current rating of 10. This fuse has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has 2 terminals. The 0446010.ZRP fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 10.92 mm long, 3.81 mm tall and 8.76 mm deep. The maximum AC voltage rating is 350 VAC and the maximum DC voltage rating is 125 VDC. Its fuse is made from plastic.
额定电压DC 125 V
额定电压AC 350 V
额定电流 10 A
电阻 0.0073 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 350 V
额定电压DC Max 125 V
额定电压AC Max 350 V
安装方式 Through Hole
引脚数 2
封装 SMD-2
长度 10.92 mm
宽度 8.76 mm
高度 3.81 mm
封装 SMD-2
工作温度 -40℃ ~ 125℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0446010.ZRP Littelfuse 力特 | 当前型号 | 当前型号 |
0447010.YXP 力特 | 功能相似 | 0446010.ZRP和0447010.YXP的区别 |
