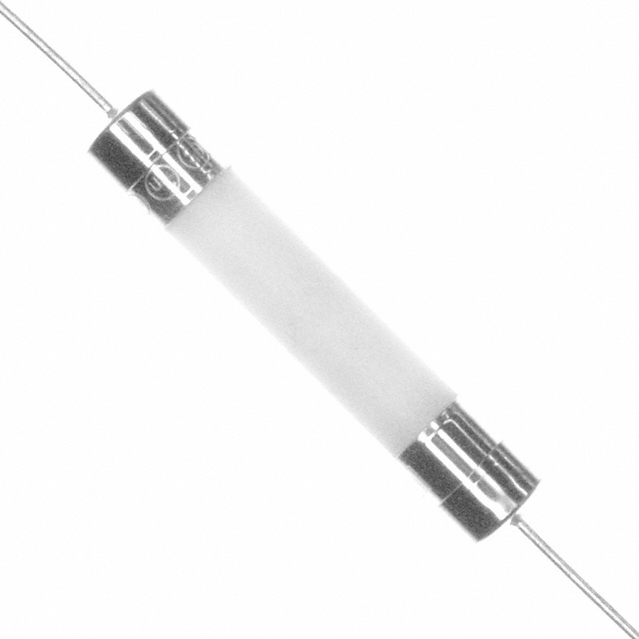

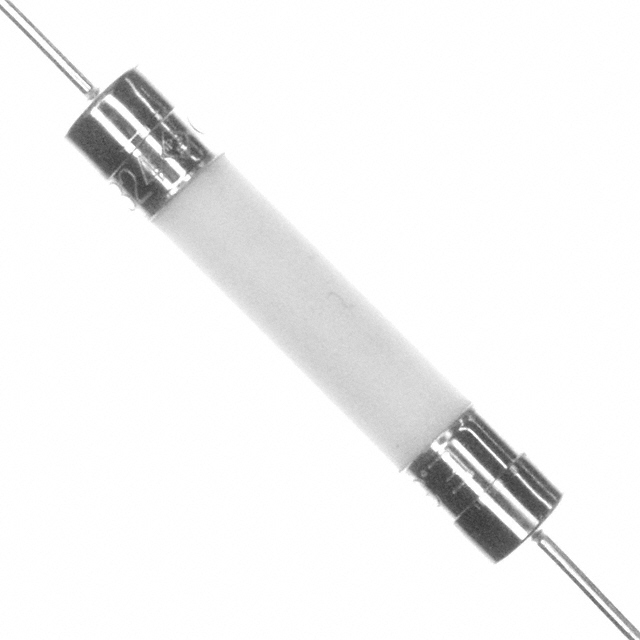

324分之314系列无铅3AB ，快熔保险丝 314/324 Series Lead-free 3AB, Fast-acting Fuse
A great alternative to a circuit breaker, this a miniature fuse from will protect your electronics. This device has a current rating of 10. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0324010.HXP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 32.72 mm long with a diameter of 6.99 mm. Its fuse is made from ceramic. The maximum AC voltage rating is 250 VAC.
额定电压DC 125 V
额定电压AC 250 V
额定电流 10 A
电阻 0.0105 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
长度 32.385 mm
直径 6.99 mm
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0324010.HXP Littelfuse 力特 | 当前型号 | 当前型号 |
324010 力特 | 完全替代 | 0324010.HXP和324010的区别 |
0324010.VXP 力特 | 完全替代 | 0324010.HXP和0324010.VXP的区别 |
0324010.MXP 力特 | 类似代替 | 0324010.HXP和0324010.MXP的区别 |
