表面安装熔断器 Surface Mount Fuses

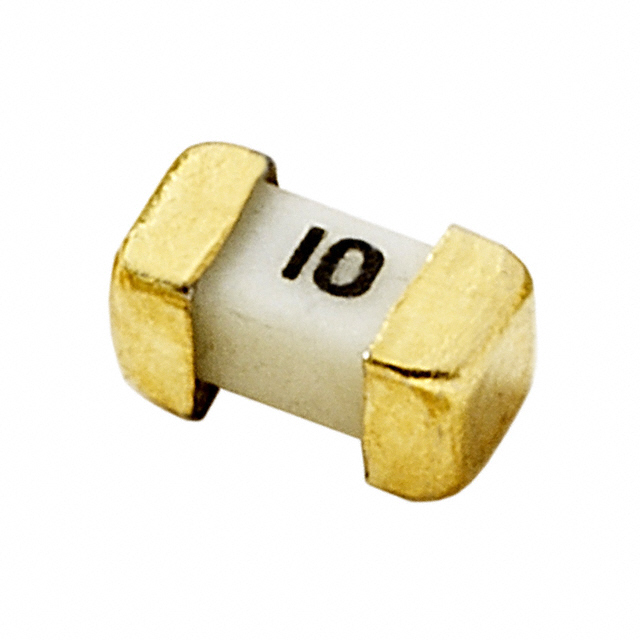

A great alternative to a circuit breaker, this a chip fuse from will protect your electronics. This device has a current rating of 4. This fuse has a minimum operating temperature of -55 °C. It has 2 terminals. The 0458004.DR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its fuse is made from ceramic. This product is 3.18 mm long, 1.58 mm tall and 1.58 mm deep. The maximum DC voltage rating is 75 VDC.
额定电压DC 75 V
额定电压AC 32 V
额定电流 4 A
电阻 0.032 Ω
工作温度Min -55 ℃
额定电压 75 V
额定电压DC Max 75 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.175 mm
宽度 1.575 mm
高度 1.58 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
