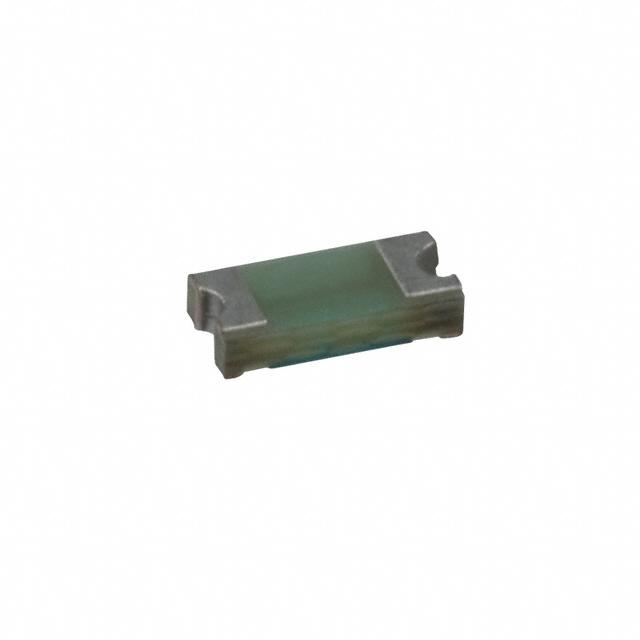

LITTELFUSE 04671.25NR 保险丝, 0603, 甚快速熔断, 1.25A
A great alternative to a circuit breaker, this a chip fuse from will protect your electronics. This device has a current rating of 1.25. This device has a maximum power dissipation of 0.1054 W. Its maximum power dissipation is 0.1054 W. This fuse has a minimum operating temperature of -55 °C and a maximum of 90 °C. It has 2 terminals. The 04671.25NR fuse has a solder pad termination style. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC. This product is 1.6 mm long, 0.31 mm tall and 0.81 mm deep.
额定电压DC 65 V
额定电压AC 32 V
额定电流 1.25 A
耗散功率 0.1054 W
电阻 0.053 Ω
工作温度Max 90 ℃
工作温度Min -55 ℃
耗散功率Max 0.1054 W
额定电压 32 V
额定电压DC Max 32 V
额定电压AC Max 32 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.813 mm
高度 0.31 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
04671.25NR Littelfuse 力特 | 当前型号 | 当前型号 |
04671.25NRHF 力特 | 类似代替 | 04671.25NR和04671.25NRHF的区别 |
04341.25NRP 力特 | 功能相似 | 04671.25NR和04341.25NRP的区别 |
