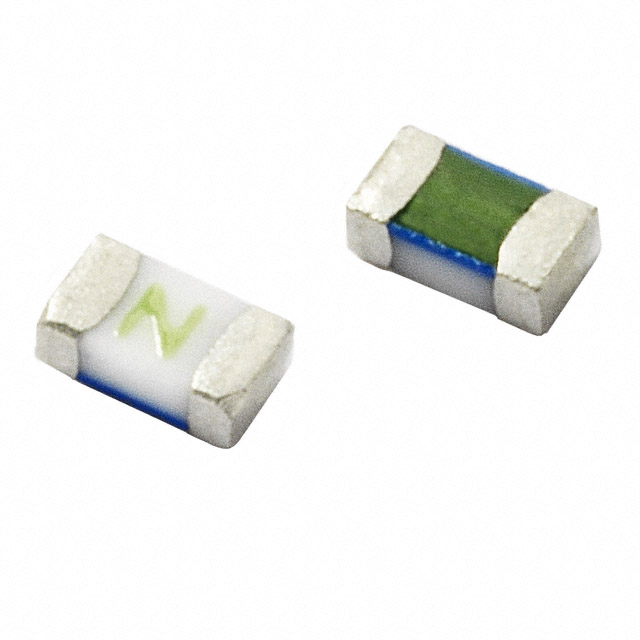

表面贴装式保险丝 FUSE 32V HIGH I2T 0603 2.5A
AC 直流保险丝 板安装（不包括管筒式） 表面贴装型 0603（1608 公制）
得捷:
FUSE BOARD MOUNT 2.5A 32VDC 0603
立创商城:
044102.5WR
贸泽:
表面贴装式保险丝 FUSE 32V HIGH I2T 0603 2.5A
艾睿:
Be protected by adding a chip 044102.5WR fuse developed by Littelfuse. This device has a current rating of 2.5. This fuse has an operating temperature range of -55 °C to 150 °C. It has 2 terminals. The 044102.5WR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its fuse is made from ceramic. The maximum AC voltage rating is 32 VAC. This product is 1.54 mm long, 0.5 mm tall and 0.85 mm deep.
Verical:
Fuse Chip 2.5A 32V SMD Solder Pad 0603 Ceramic T/R CSA/UL
Newark:
# LITTELFUSE 044102.5WR Fuse, Surface Mount, 441 Series, 2.5 A, 32 VDC, Fast Acting, 0603
额定电压DC 32 V
额定电压AC 32 V
额定电流 2.5 A
电阻 0.02 Ω
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 32 V
额定电压AC Max 32 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.54 mm
宽度 0.85 mm
高度 0.502 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
044102.5WR Littelfuse 力特 | 当前型号 | 当前型号 |
0603FA2.5-R 库柏 | 功能相似 | 044102.5WR和0603FA2.5-R的区别 |
