0435.500KR

LITTELFUSE  0435.500KR  保险丝, 0402, 甚快速熔断, 500mA

500 mA AC 32 V 直流保险丝 板安装（不包括管筒式） 表面贴装型 0402（1005 公制）

得捷:
FUSE BOARD MNT 500MA 32VDC 0402

立创商城:
0435.500KR

e络盟:
LITTELFUSE  0435.500KR  保险丝, 0402, 甚快速熔断, 500mA

艾睿:

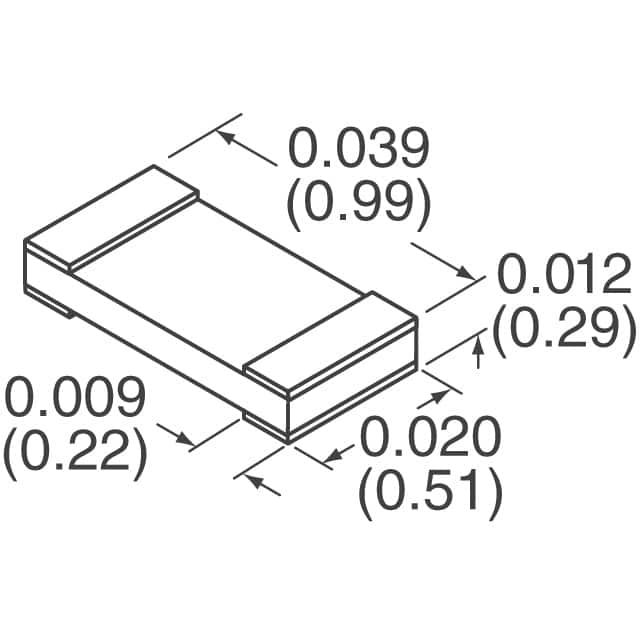

A great alternative to a circuit breaker, this a chip 0435.500KR fuse from Littelfuse will protect your electronics. This device has a current rating of 0.5. This device has a maximum power dissipation of 0.04668 W. Its maximum power dissipation is 0.04668 W. This fuse has a minimum operating temperature of -55 °C and a maximum of 90 °C. It has 2 terminals. The 0435.500KR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The maximum DC voltage rating is 32 VDC. This product is 1.04Max mm long, 0.38Max mm tall and 0.56Max mm deep. Its fuse is made from epoxy glass.

Chip1Stop:
Fuse Chip Very Fast Acting 0.5A 32V SMD Solder Pad 0402 Epoxy Glass T/R CSA

Verical:
Fuse Chip Very Fast Acting 0.5A 32V SMD Solder Pad 0402 Epoxy Glass T/R CSA

Newark:
# LITTELFUSE  0435.500KR  Fuse, Surface Mount, 435 Series, 500 mA, 32 VDC, Very Fast Acting, 0402

Win Source:
FUSE BOARD MNT 500MA 32VDC 0402
