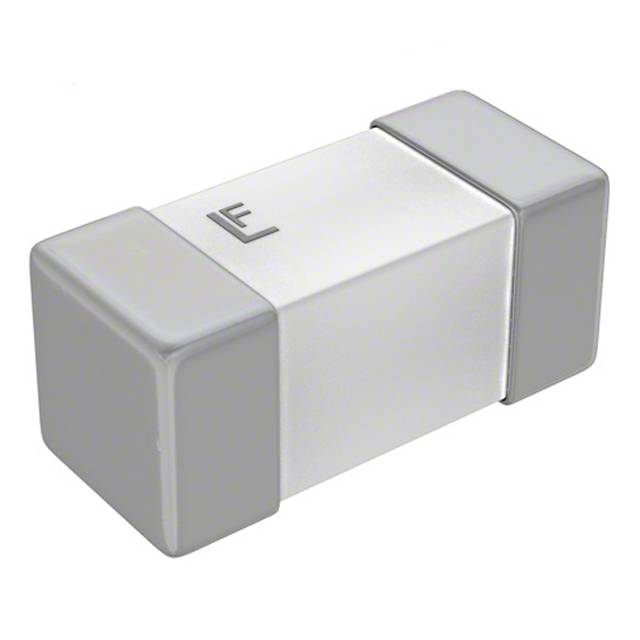

LITTELFUSE 0448005.MR 保险丝, 甚快速熔断, SMD, 5A
The is a 5A very fast-acting SMF Fuse with ceramic body and gold-plated caps terminations. The Nano²® square surface mount fuse is a very small and fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly.
- .
- Low temperature derating
- .
- -55 to 125°C Operating temperature range
额定电压DC 32 V
额定电压AC 125 V
额定电流 5 A
电阻 0.01531 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
封装 SMD
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 电源管理, 通信与网络, Portable Devices, 工业, Computers & Computer Peripherals, Wireless, Consumer Electronics, 消费电子产品, 便携式器材, Communications & Networking, 计算机和计算机周边, 无线, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0448005.MR Littelfuse 力特 | 当前型号 | 当前型号 |
0451005.NRL 力特 | 类似代替 | 0448005.MR和0451005.NRL的区别 |
0451005.MRL 力特 | 功能相似 | 0448005.MR和0451005.MRL的区别 |
0453005.MR 力特 | 功能相似 | 0448005.MR和0453005.MR的区别 |
