0448004.MR

LITTELFUSE  0448004.MR.  保险丝, SMD, 4A, 快熔型

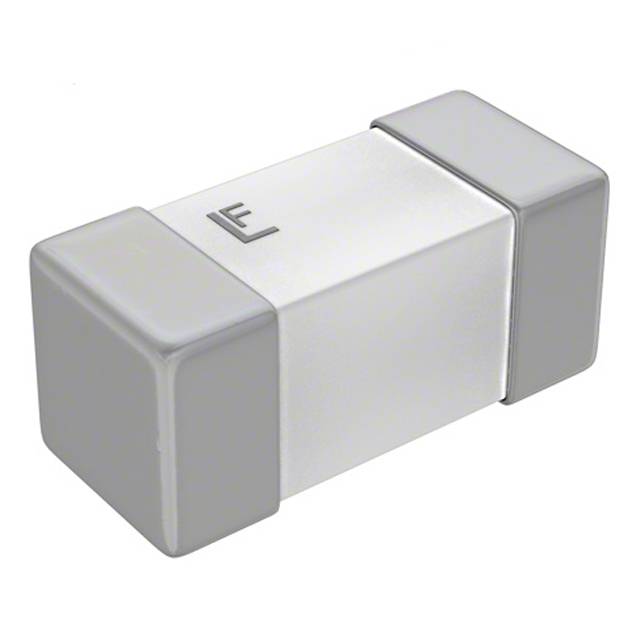

The NANO2 448 series surface-mount Very Fast Acting Fuse made of ceramic body with gold-plated caps. It is fully compatible with lead-free solder alloy and higher temperature profiles associated with lead-free assembly.

.

Small size, square shape

.

Low temperature de-rating

.

-55 to 125°C Operating temperature range

立创商城:
4A 125V 快断

贸泽:
表面贴装式保险丝 125VAC 4A .01577ohms 448 NANO2

e络盟:
LITTELFUSE  0448004.MR  保险丝, SMD, 4A, 快熔型, 整卷

艾睿:
A great alternative to a circuit breaker, this a chip 0448004.MR fuse from Littelfuse will protect your electronics. This device has a current rating of 4. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0448004.MR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its fuse is made from ceramic. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC. This product is 6.1 mm long, 2.69 mm tall and 2.69 mm deep.

Chip1Stop:
Fuse Chip Very Fast Acting 4A 125V SMD Solder Pad 2410 Ceramic T/R

Verical:
Fuse Chip Very Fast Acting 4A 125V SMD Solder Pad 2410 Ceramic T/R CSA/PSE/UL

Newark:
# LITTELFUSE  0448004.MR  Fuse, Surface Mount, NANO2 448 Series, 4 A, 125 VAC, 32 VDC, Very Fast Acting, SMD
