0160002.MR概述

Fuse Chip 2A 250V SMD Solder Pad 10.9 X 4.8mm Ceramic T/R

A great alternative to a circuit breaker, this a chip fuse from will protect your electronics. This device has a current rating of 2. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0160002.MR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 10.9 mm long, 4.8 mm tall and 4.8 mm deep. Its fuse is made from ceramic. The maximum AC voltage rating is 250 VAC.

0160002.MR中文资料参数规格
技术参数

额定电压AC 250 V

额定电流 2 A

电阻 0.0511 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 250 V

额定电压AC Max 250 V

封装参数

安装方式 Surface Mount

引脚数 2

封装 SMD-2

外形尺寸

长度 10.1 mm

宽度 3.12 mm

高度 4.8 mm

封装 SMD-2

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/12/17

海关信息

ECCN代码 EAR99

数据手册

0160002.MR引脚图与封装图

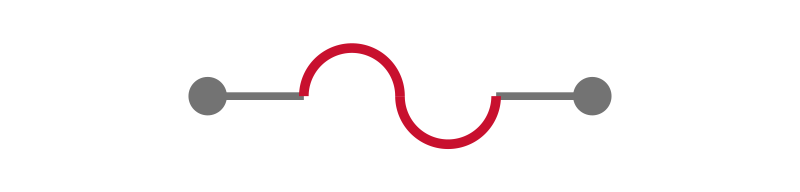

0160002.MR引脚图

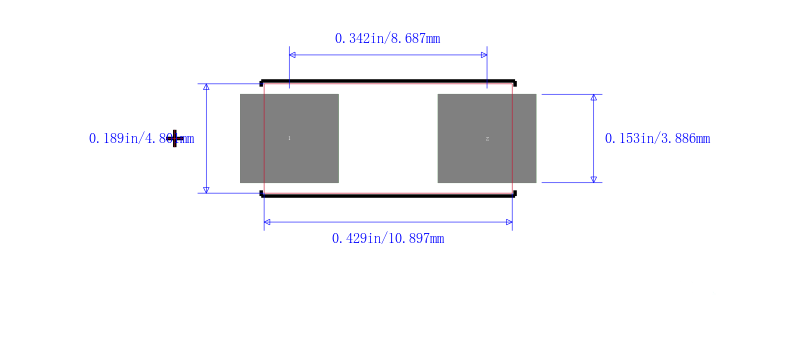

0160002.MR封装图
0160002.MR封装焊盘图
