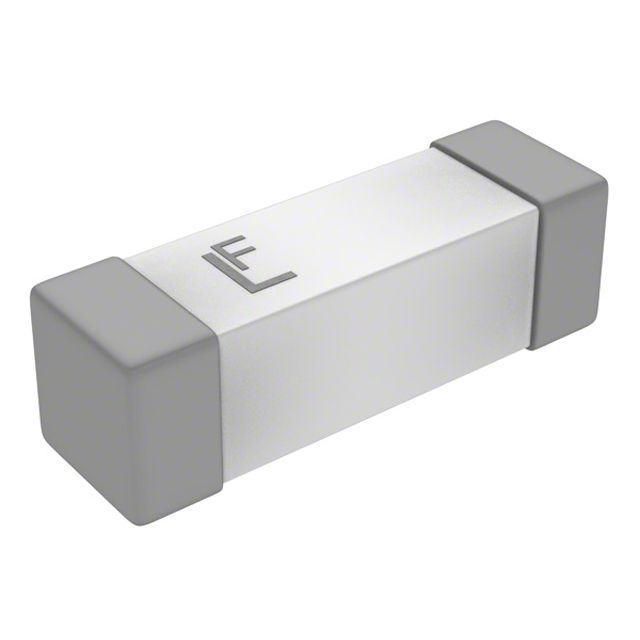

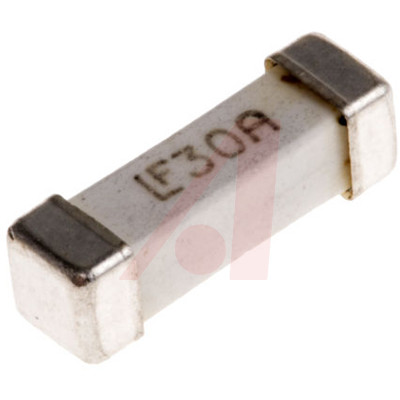

LITTELFUSE 0456030.ER 保险丝, SMD, 30A, 整卷
456 系列 NANO2 表面安装熔丝
Littelfuse 456 系列 NANO2 表面安装熔丝是小型高电流设备,设计用于支持各种应用的更高电流要求。 456 系列表面安装熔丝还与无铅焊锡合金完全兼容,并具有与无铅装配关联的更高温度范围,允许更大的灵活性且易于使用。
超快反应
小尺寸
欧时:
Littelfuse 30A电流 FF熔度 不可复位表面固定熔断器 0456030.ER, 10.1 x 3.12 x 3.12mm, 125V ac
得捷:
FUSE BOARD MNT 30A 125VAC 72VDC
立创商城:
30A 125VAC/72VDC 快断
e络盟:
保险丝, SMD, 30A, 整卷
艾睿:
A great alternative to a circuit breaker, this a chip 0456030.ER fuse from Littelfuse will protect your electronics. This device has a current rating of 30. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0456030.ER fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 10.1 mm long, 3.12 mm tall and 3.12 mm deep. Its fuse is made from ceramic. The maximum AC voltage rating is 125 VAC.
Allied Electronics:
30A FF Non-Resettable Surface Mount Fuse, 125 V ac
富昌:
456 系列 快熔型 125 V 30 A 10.10 x 3.25 mm NANO2® 陶瓷 保险丝
Chip1Stop:
Fuse Chip 30A 125V SMD Solder Pad 10.1 X 3.12 X 3.12mm Ceramic T/R
Verical:
Fuse Chip 30A 125V SMD Solder Pad 10.1 X 3.12mm Ceramic T/R CSA/PSE/TUV/cULus
Newark:
# LITTELFUSE 0456030.ER Fuse, Surface Mount, NANO2 456 Series, 30 A, 125 VAC, 32 VDC, Very Fast Acting, SMD
儒卓力:
**30A 125V very fast SMD NANO **
额定电压DC 32 V
额定电压AC 125 V
额定电流 30 A
电阻 0.00132 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 10.1 mm
宽度 4.445 mm
高度 3.12 mm
封装 SMD-2
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 安全, Safety, 电源管理, Computers & Computer Peripherals, Power Management, Automotive, HVAC, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
