08051A221FAT2A

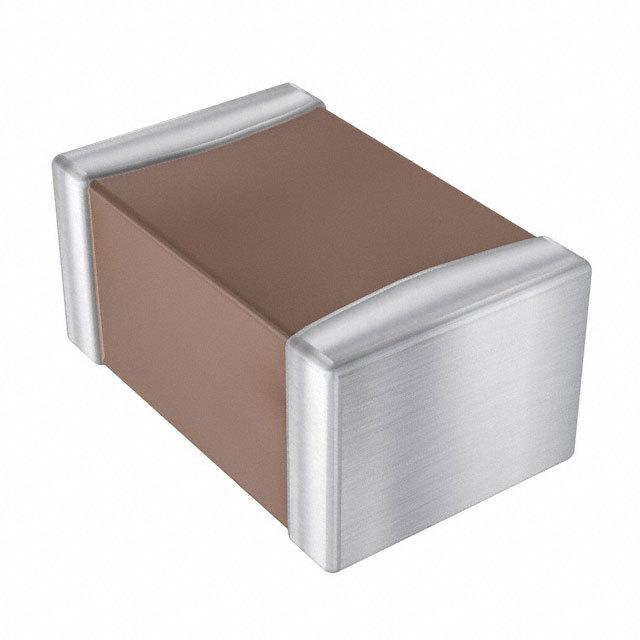

AVX  08051A221FAT2A  多层陶瓷电容器, 表面贴装, 220 pF, ± 1%, C0G / NP0, 100 V, 0805 [2012 公制]

The is a surface-mount SMT Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The C0G NP0 is the most popular formulation of the temperature-compensating, EIA Class I ceramic materials. Modern C0G NP0 formulations contain neodymium, samarium and other rare earth oxides. C0G NP0 ceramics offer one of the most stable capacitor dielectrics available. Capacitance change with temperature is 0±30ppm/°C which is less than ±0.3% ΔC from -55 to 125°C. Capacitance drift or hysteresis for C0G NP0 ceramics is negligible at less than ±0.05% versus up to ±2% for films. Typical capacitance change with life is less than ±0.1% for C0G NP0, one-fifth that shown by most other dielectrics.

.

Reflow/wave soldering method

.

EIA Class I dielectric

.

C0G NP0 formulations show no aging characteristics

.

Low parasitics

.

Excellent EMI filtering capabilities

.

Standard product
