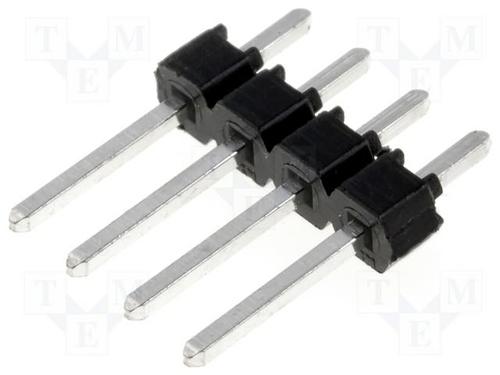

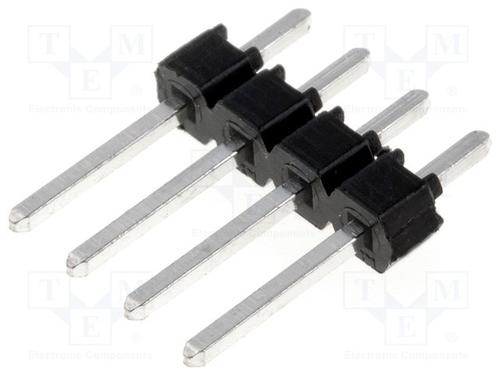

2.54毫米（ .100 ）间距C-电网III ™头，单列，立式， 4回路，锡（Sn ）镀层 2.54mm .100 Pitch C-Grid III™ Header, Single Row, Vertical, 4 Circuits, Tin Sn Plating
Connector Header Through Hole 4 position 0.100" 2.54mm
得捷:
CONN HEADER VERT 4POS 2.54MM
艾睿:
As an added safety precaution, the unshrouded 0901200124 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 4 contacts that are made out of brass and plated with tin over nickel. Its pitch is 2.54 mm. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 350 VDC|350VAC. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. The item will be shipped in tray orientation. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 10.16 mm long, 9.25 mm tall and 2.54 mm deep. 0901200124 is housed in black polyester.
安富利:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag
Verical:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole C-Grid III™ Tray
