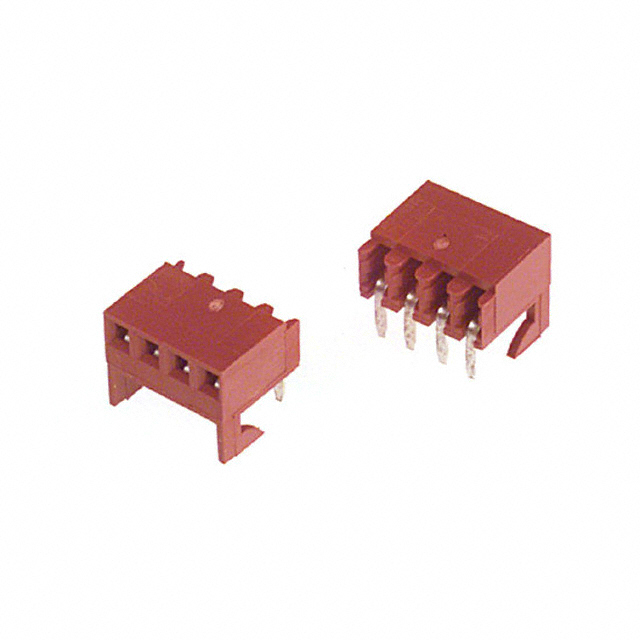

2.54毫米（ .100 ）间距KK® PC板连接器，直角，端至端可堆叠， 0.38μm （ 15μ ），金（Au ） ， 4电路 2.54mm .100 Pitch KK® PC Board Connector, Right Angle, End-to-End Stackable, 0.38μm 15μ Gold Au, 4 Circuits
4 Position Receptacle Connector Board Edge, Through Hole, Right Angle
得捷:
CONN RCPT 4POS 0.1 GOLD EDGE MNT
贸泽:
Molex KK 100 PCB Assy RtAn 04 Ckt Gold
艾睿:
Protect your printed circuit boards from accidental damages with Molex&s;s socket strip 0022162040 header connector. This RCP connector&s;s 4 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2.54 mm. It has a receptacle type gender. This is a 1-row connector. It has a maximum voltage rating of 250 V. It has a right angle body orientation. This device has a maximum current rating of 2.5 A/contact. The item will be shipped in tray orientation. It uses the solder termination method. This product is 10.06 mm long, 4.7 mm tall and 7.9 mm deep. 0022162040 is housed in white nylon. This connector has an operating temperature of -40 to 80 °C.
Verical:
Conn Socket Strip RCP 4 POS 2.54mm Solder RA Thru-Hole KK® Tray
