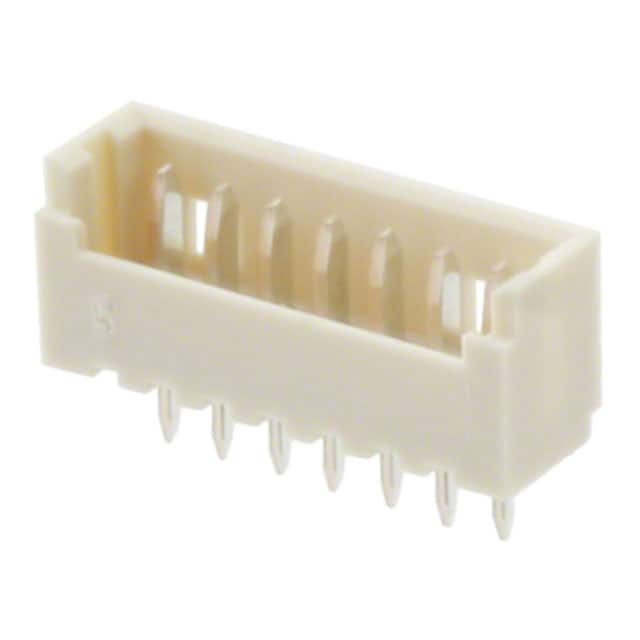

1.25毫米（ .049 “ ）间距PicoBlade ™线对板头，垂直，用摩擦锁， 7Circuits 1.25mm .049" Pitch PicoBlade™ Wire-to-Board Header, Vertical, with Friction Lock, 7Circuits
Connector Header Through Hole 7 position 0.049" 1.25mm
得捷:
CONN HEADER VERT 7POS 1.25MM
艾睿:
Mounting this wire to board 0530470710 header connector from Molex to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 7 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 125 V. It has a straight body orientation. This is a 1-row connector. It has a header type gender. Its pitch is 1.25 mm. This device has a maximum current rating of 1 A/contact. The component will be shipped in tray format. It uses the solder termination method. 0530470710 is housed in white nylon 6/6. This product is 10.5 mm long, 4.2 mm tall and 3.2 mm deep. This connector has an operating temperature of -40 to 85 °C.
Verical:
Conn Shrouded Header 4 Sides HDR 7 POS 1.25mm Solder ST Thru-Hole PicoBlade™ Tray
