0603 47nF ±10% 25V X7R
±10% 25V 陶瓷器 X7R 0603(1608 公制)
得捷:
CAP CER 0.047UF 25V X7R 0603
艾睿:

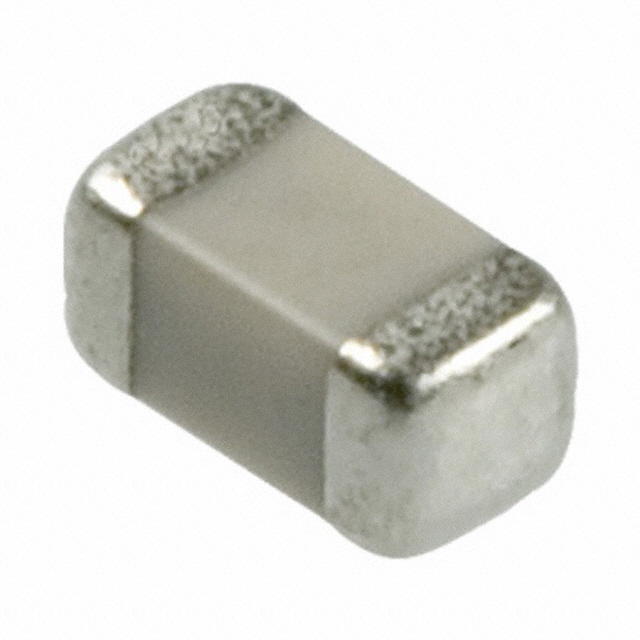

This 06033C473K4T2A multilayer ceramic capacitor from AVX uses different ceramic dielectric materials to achieve a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 1.6 mm long, 0.9Max mm tall and 0.81 mm deep. Its capacitance value is 0.047uF. It has a tolerance of 10%.
安富利:
0603,X7R,.047UF,10%,25V,TR,,AUTOMOTIVE
Verical:
Cap Ceramic 0.047uF 25V X7R 10% Pad SMD 0603 125C Automotive T/R
儒卓力:
**KC 47nF 0603 10% 25V X7R AECQ **
额定电压DC 25.0 V
电容 0.047 µF
容差 ±10 %
电介质特性 X7R
产品系列 Automotive
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.9 mm
封装公制 1608
封装 0603
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
06033C473K4T2A AVX 艾维克斯 | 当前型号 | 当前型号 |
06033C473KAT2A 艾维克斯 | 完全替代 | 06033C473K4T2A和06033C473KAT2A的区别 |
06033C473K4Z2A 艾维克斯 | 类似代替 | 06033C473K4T2A和06033C473K4Z2A的区别 |
VJ0603Y473KXXCW1BC 威世 | 类似代替 | 06033C473K4T2A和VJ0603Y473KXXCW1BC的区别 |
