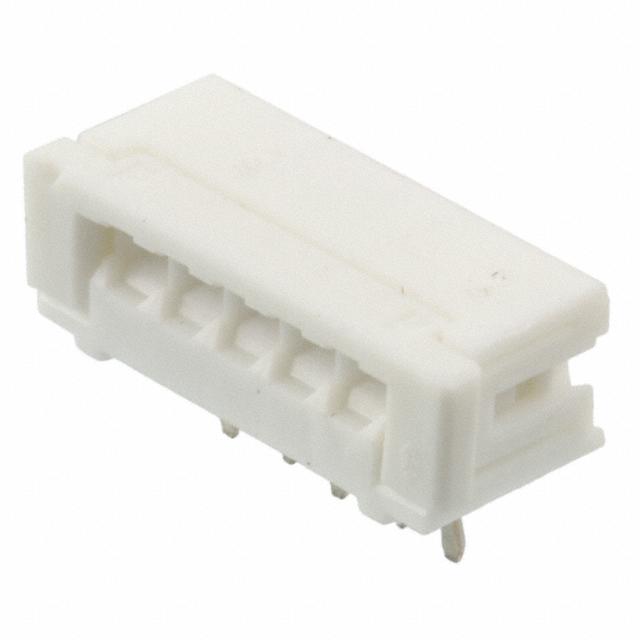

2.00毫米（ .079 “ ）间距线陷阱，拉盖式，直角， 5电路 2.00mm .079" Pitch Wire Trap, Pull-Cover Style, Right Angle, 5 Circuits
5 Position Receptacle Connector White Poke-In 26 AWG Through Hole, Right Angle, Press-Fit
得捷:
CONN RCPT POKE 5P 26AWG PCB RA
艾睿:
This ribbon cable connector 0521510510 flexible flat cable from Molex is advantageous over traditional spherical wiring because it can hold many transmission channels with limited space. It has a maximum voltage rating of 150 V. This is a 1-row connector. This female connector&s;s 5 contacts that are made out of phosphor bronze and plated with tin. It has a right angle body orientation. Its pitch is 2 mm. This device has a maximum current rating of 2 A/contact. The item will be shipped in tray orientation. This flexible flat cable has an operating temperature of -40 to 105 °C. It uses the solder termination method. Its wire is 26 AWG. 0521510510 is housed in white polybutylene terephthalate. This product is 15.3 mm long, 5.2 mm tall and 6.3 mm deep.
安富利:
Conn Ribbon Cable Connector M 5 POS 2mm Wire Wrap RA Thru-Hole Tray
