009176002732106

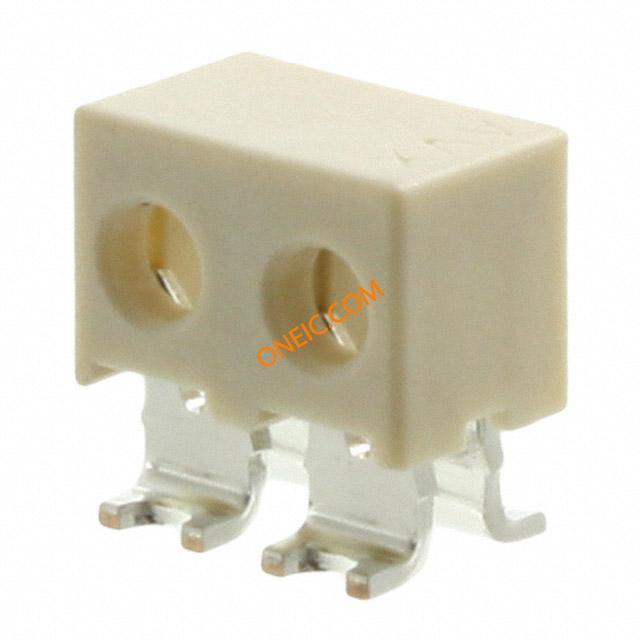

Conn IDC Connector F 2POS 4mm Solder RA SMD T/R

2 Position Individual Wires Connector White IDC 24 AWG, Stranded Surface Mount

得捷:
CONN WIRE IDC 2POS 24AWG SMD

艾睿:
Support physical configuration options for jumper posts by mounting this idc connector 009176002732106 header connector from AVX. This F connector&s;s 2 contacts that are made out of copper alloy and plated with tin over nickel. Its pitch is 4 mm. It has a female type gender. This is a 1-row connector. It has a right angle body orientation. It has a maximum voltage rating of 300 VAC. This device has a maximum current rating of 10 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This connector has an operating temperature of -40 to 125 °C. It uses the solder termination method. 009176002732106 is housed in white nylon. This product is 8 mm long, 7.9 mm tall and 5 mm deep.

安富利:
Conn IDC Connector F 2 POS 4mm Solder ST SMD T/R

富昌:
9176 Series 2 Way Wire to With Cap Board Press Fit Discrete Wire IDC SMT

Verical:
Conn IDC Connector F 2 POS 4mm Solder RA SMD T/R
