0196060003

0196060003图片1

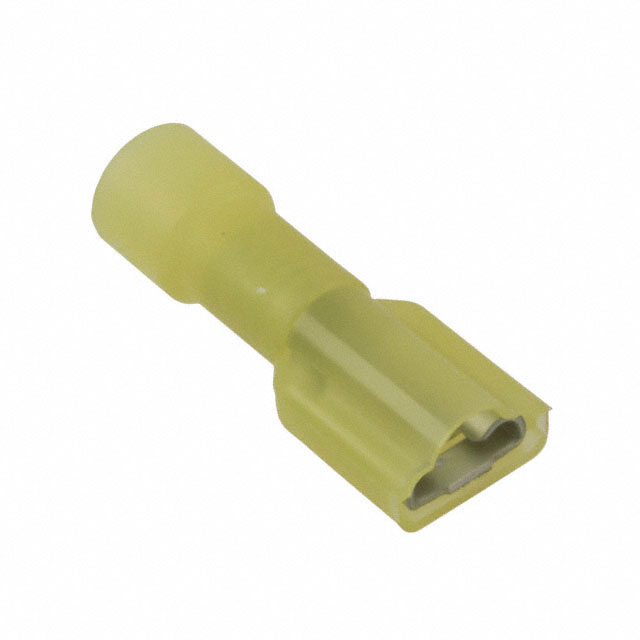

0196060003图片2
0196060003图片3
0196060003概述

InsulKrimp女™快速断开10-12 AWG线,迈拉胶带 InsulKrimp™ Female Quick Disconnect for 10-12 AWG Wire, Mylar Tape

Make a connection with your terminal blocks using the quick disconnect terminal wire terminal from . It has a female type gender. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 16.2 mm long and 9.7 mm. Its wire is 10-12 AWG. This wire terminal has an operating temperature of -65 to 105 °C.

0196060003中文资料参数规格
技术参数

线规 10AWG ~ 12AWG

工作温度Max 105 ℃

工作温度Min -65 ℃

额定电压Max 600 V

外形尺寸

长度 26.16 mm

物理参数

颜色 Yellow

触点材质 Brass

工作温度 -65℃ ~ 105℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0196060003
型号: 0196060003
制造商: Molex 莫仕
描述:InsulKrimp女™快速断开10-12 AWG线,迈拉胶带 InsulKrimp™ Female Quick Disconnect for 10-12 AWG Wire, Mylar Tape
替代型号0196060003
型号/品牌 代替类型 替代型号对比

0196060003

Molex 莫仕

当前型号

当前型号

0196060002

莫仕

完全替代

0196060003和0196060002的区别

0196060001

莫仕

完全替代

0196060003和0196060001的区别
