0612 2.2 µF 10 V ±10 % 容差 X7R 表面贴装 多层陶瓷电容
±10% 10V 陶瓷器 X7R 0612(1632 公制)
得捷:
CAP CER 2.2UF 10V X7R 0612
欧时:
### AVX 0612 MLCC series### 0612 Range
艾睿:

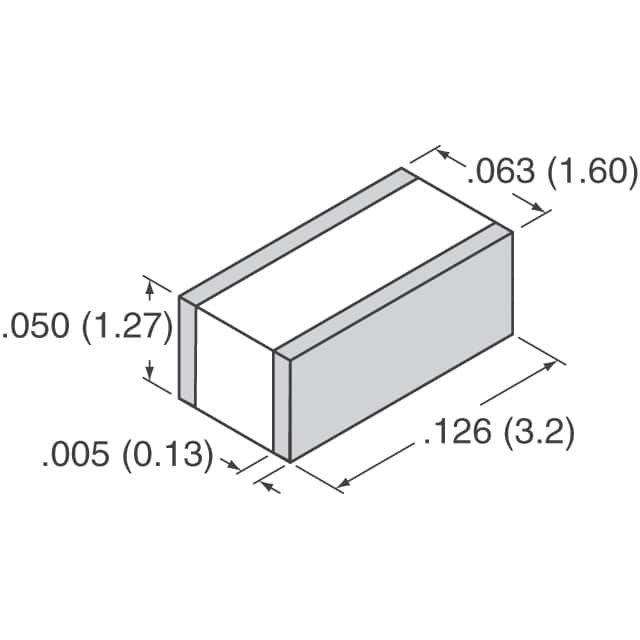

This 0612ZC225KAT2A multilayer ceramic capacitor from AVX uses different ceramic dielectric materials to achieve a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its capacitance value is 2.2uF. It has a tolerance of 10%. The 0612ZC225KAT2A MLCC capacitor has a wide terminal termination style. This product is 1.6 mm long, 1.27Max mm tall and 3.2 mm deep.
安富利:
Cap Ceramic 2.2uF 10V X7R 10% SMD 0612 125°C Embossed T/R
Verical:
Cap Ceramic 2.2uF 10V X7R 10% Wide Terminal SMD 0612 125C T/R
Newark:
# AVX 0612ZC225KAT2A SMD Multilayer Ceramic Capacitor, 0612 [1632 Metric], 2.2 µF, 10 V, ± 10%, X7R
额定电压DC 10.0 V
电容 2.2 µF
容差 ±10 %
电介质特性 X7R
产品系列 LICC
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装 0612
长度 1.6 mm
宽度 1.60 mm
高度 1.27 mm
封装 0612
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
温度系数 ±15 %
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 旁通,去耦
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0612ZC225KAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
0612ZC225MAT2A 艾维克斯 | 类似代替 | 0612ZC225KAT2A和0612ZC225MAT2A的区别 |
LLL31MR71A225KA01L 村田 | 类似代替 | 0612ZC225KAT2A和LLL31MR71A225KA01L的区别 |
0612ZC225MAT4A 艾维克斯 | 类似代替 | 0612ZC225KAT2A和0612ZC225MAT4A的区别 |
