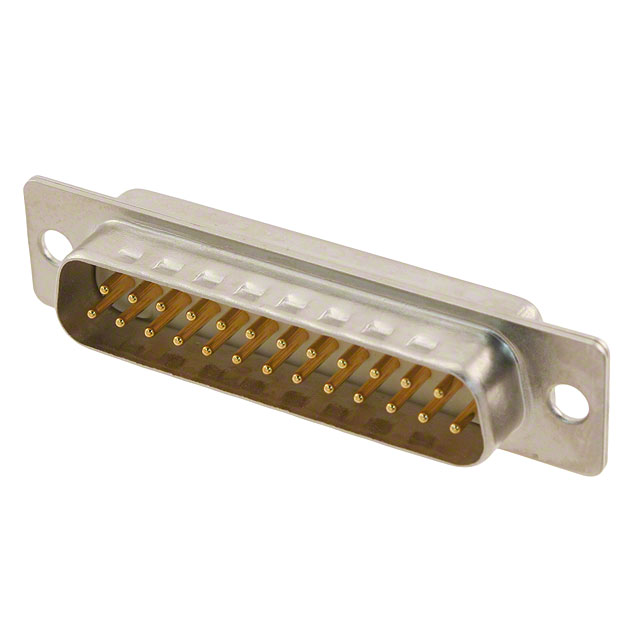

HARTING 09643217210 滤波连接器, D-SUB, D-Sub Filter系列, DB, 插头, 25 触点, 47 pF, 钢主体
The D-sub filter series solder buckets through-hole D-sub Filter Connectors with male and female connections. It is available in with 47pFC, 470PFC, 1000pFC and 3900pFC filters types.
得捷:
CONN D-SUB PLUG 25POS SLDR CUP
e络盟:
D-Sub 连接器, 过滤式, 插头, D-Sub Filter系列, 25 触点, DB, 焊接杯
艾睿:
Communicate with your serial connections using the 09643217210 DVI connector from Harting. It has a straight body orientation. It has a maximum voltage rating of 100 V. This 2-row connector has a single port. This male connector has 25 male contacts. This device has a maximum current rating of 7.5 A. 09643217210 is housed in polychlorinated terphenyl. Its 25 terminals use the solder cup termination method. This product is 53 mm long, 12.5 mm tall and 14.3 mm deep.
Allied Electronics:
25 way S Cup Male 47 Wout
Newark:
# HARTING 09643217210 Filtered D Sub Connector, D-Sub Filter Series, DB, Plug, 25, 47 pF, Metal
触点数 25
极性 Male
线规 20 AWG
额定电流 7.5 A
绝缘电阻 1000 MΩ
电容 47 pF
排数 2
易燃性等级 UL 94 V-0
针脚数 25
接触电阻 10 mΩ
拔插次数 200
额定电流Max 7.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 100 V
额定电压 100 V
接触电阻Max 10 mΩ
安装方式 Solder
封装 Steel
长度 53 mm
宽度 14.3 mm
高度 12.5 mm
封装 Steel
颜色 Natural
触点材质 Copper Alloy
材质 Steel
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 计算机和计算机周边, 通信与网络, Computers & Computer Peripherals, 工业, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
09643217210 Harting Technology Group 哈丁电子 | 当前型号 | 当前型号 |
DBH-25P Cinch Connectivity Solutions | 功能相似 | 09643217210和DBH-25P的区别 |
