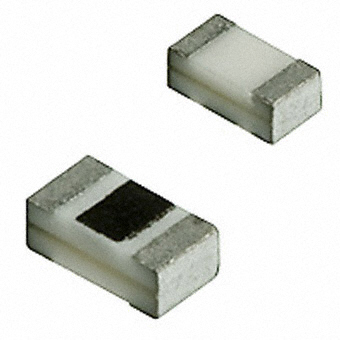

0603 1.2pF ±0.1pF 50V A-F
When storing signals in the GHz, this metal film capacitor made from is a must-have when storing electrical energy. It can withstand a voltage of 50 VDC. It has 2 terminals. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its capacitance value is 1.2pF. This product is 1.6 mm long, 0.63 mm tall and 0.81 mm deep. This item should be stored between 15 °C and 35 °C. This metal film capacitor has an operating temperature range of -55 °C to 125 °C.
额定电压DC 50.0 V
电容 1.2 pF
容差 ±0.1 pF
自谐频率 5.20 GHz
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.60 mm
宽度 0.8 mm
高度 0.63 mm
封装公制 1608
封装 0603
材质 A-F/-55℃~+125℃
工作温度 -55℃ ~ 125℃
温度系数 ±0.00 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
06035J1R2BBSTR AVX 艾维克斯 | 当前型号 | 当前型号 |
C1608C0G1H1R2B 东电化 | 完全替代 | 06035J1R2BBSTR和C1608C0G1H1R2B的区别 |
06035J1R2BAWTR 艾维克斯 | 功能相似 | 06035J1R2BBSTR和06035J1R2BAWTR的区别 |
