LITTELFUSE 0451.500NRL 保险丝, SMD 快速熔断, 500MA
The is a 0.5A/125VAC very fast acting Quick Blow Fuse with ceramic body, gold over nickel plated caps, tin-lead alloy termination, square surface mount and halogen-free. This 451-series fuse features small size and low temperature de-rating. Suitable for the secondary side circuit over-current protection applications and is designed for PCB using surface mount technology.
- .
- 0.42R Nominal cold resistance
- .
- -55 to 125°C Operating temperature range
额定电压DC 32 V
额定电压AC 125 V
额定电流 0.5 A
电阻 304.6 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD

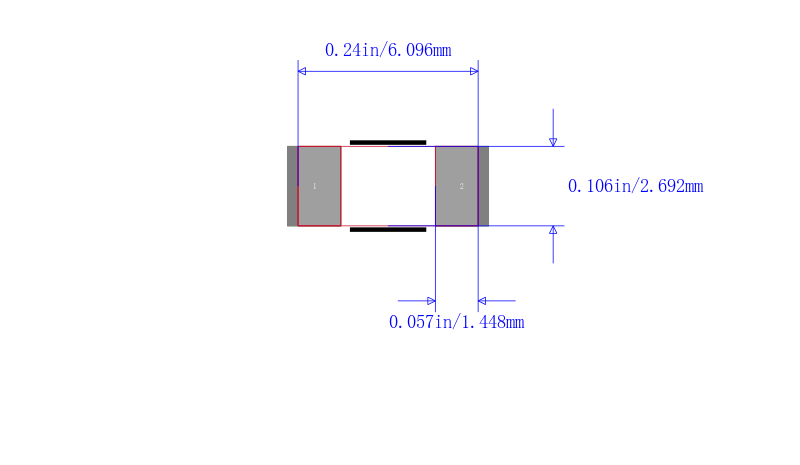

长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
封装 SMD
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automation & Process Control, Safety, Wireless, 自动化与过程控制, 无线, 电源管理, Computers & Computer Peripherals, Power Management, 通信与网络, 消费电子产品, Portable Devices, Consumer Electronics, 工业, 安全, Industrial, Communications & Networking, 便携式器材, HVAC, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0451.500NRL Littelfuse 力特 | 当前型号 | 当前型号 |
0448.500MR 力特 | 类似代替 | 0451.500NRL和0448.500MR的区别 |
0453.500NR 力特 | 类似代替 | 0451.500NRL和0453.500NR的区别 |
0451.500MRL 力特 | 功能相似 | 0451.500NRL和0451.500MRL的区别 |
