薄膜技术 Thin-Film Technology

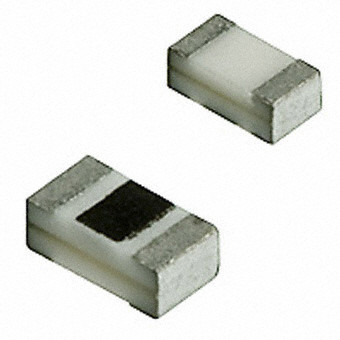

This metal film capacitor made from offers solutions when capacitors at frequencies up to the GHz range are needed. It can withstand a voltage of 50 VDC. It has 2 terminals. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This metal film capacitor has an operating temperature range of -55 °C to 125 °C. This item should be stored between 15 °C and 35 °C. This product is 1.6 mm long, 0.63 mm tall and 0.81 mm deep. Its capacitance value is 4.7pF.
额定电压DC 50.0 V
电容 4.7 pF
容差 ±0.1 pF
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.60 mm
宽度 0.8 mm
高度 0.63 mm
封装公制 1608
封装 0603
材质 A-F/-55℃~+125℃
工作温度 -55℃ ~ 125℃
温度系数 ±0.00 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 Non-Compliant
含铅标准 Contains Lead
