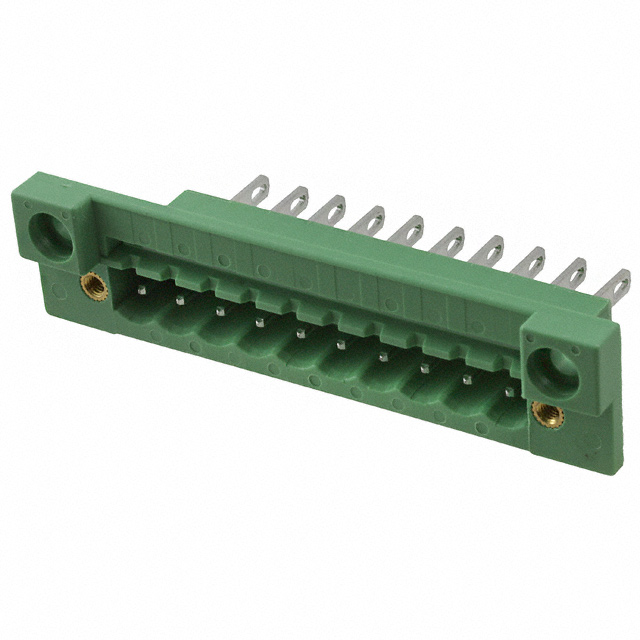

可插拔接线端子 10 Pos 5.08mm pitch Feed Through Header
接线板 - 面板安装接头，公引脚 绿色
得捷:
TERM BLK HEADER 10POS GREEN
贸泽:
可插拔接线端子 10 Pos 5.08mm pitch Feed Through Header
艾睿:
Phoenix Contact brings you their wire to wire 0710251 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector has 10 contacts that are plated with tin. It has a header type gender. This is a 1-row connector. It has a straight body orientation. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. 0710251 is housed in polyamide. It uses the solder lug termination method. This product is 71.12 mm long, 17.5 mm tall and 29.5 mm deep.
Verical:
Conn Wire to Wire HDR 10 POS 5.08mm Solder Lug ST Wall Mount
MASTER:
Feed-through header - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 10 - pitch: 5.08 mm - connection method: Solder/Slip-on connection - color: green - contact surface: Tin - mounting: Direct
Online Components:
Conn Wire to Wire HDR 10 POS 5.08mm Solder Lug ST Wall Mount
Electro Sonic:
Feed-through header - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
