0709547

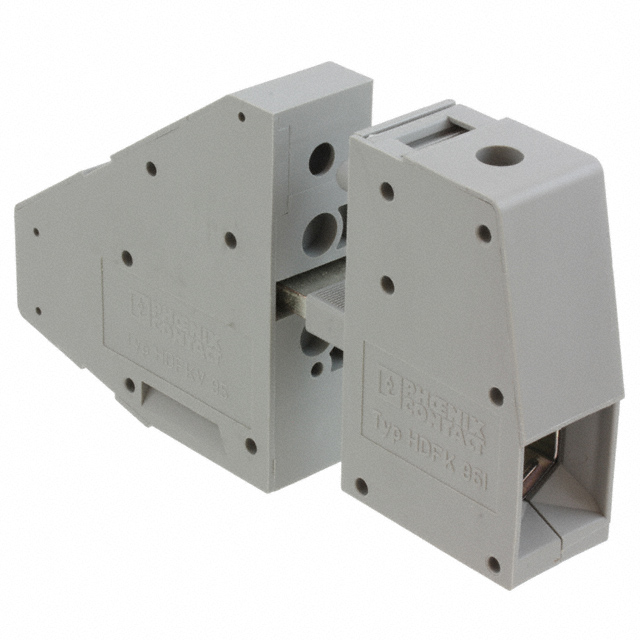

0709547图片1
0709547图片2
0709547图片3
0709547图片4
0709547图片5
0709547图片6
0709547图片7
0709547概述

Conn Feed-Through Terminal Block F 2POS Screw Panel Mount 232A

接线板 - 面板安装


得捷:
TERM BLK SCREW CLAMP 1POS GRAY


MASTER:
Panel feed-through terminal block - connection method: Screw connection with tension sleeve - Screw connection with tension sleeve - number of positions: 1 - load current: 232 A - cross section: 25 mm² - 95 mm² - connection direction of the conductor to p


Online Components:
Conn Feed-Through Terminal Block F 2 POS Screw Panel Mount 232A


Electro Sonic:
Panel feed-through terminal block - connection method: Screw connection with tension sleeve - Screw connection with tension sleeve - number ...


0709547中文资料参数规格
技术参数

触点数 2

线规 4 AWG

排数 2

电路数 1

易燃性等级 UL 94 V-0

针脚数 2

额定电流Max 232 A

额定电压Max 1000 V

封装参数

安装方式 Screw

物理参数

外壳颜色 Gray

颜色 Gray

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买0709547
型号: 0709547
描述:Conn Feed-Through Terminal Block F 2POS Screw Panel Mount 232A
