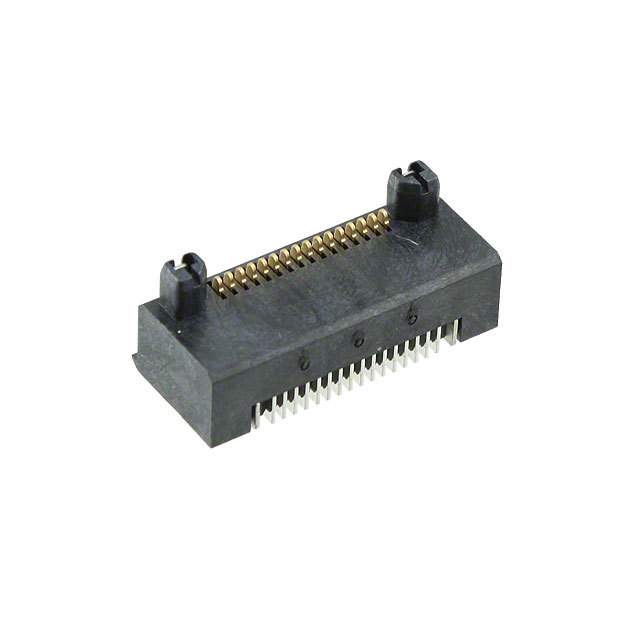

Conn Cellular Phone Connector PL 16POS 0.8mm Solder ST SMD 16 Terminal 1Port Embossed T/R
16 位置 Handylink 托架 焊接 表面贴装型
得捷:
CONN CRADLE 16POS SLD SMD
艾睿:
This cellular phone connector 0455600160 telephone and telecom connector from Molex is the perfect connector for high-power applications. This PL connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over palladium nickel over nickel. It has a plug type gender. Its pitch is 0.8 mm. This connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 30 V. This device has a maximum current rating of 1.5 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. 0455600160 is housed in black liquid crystal polymer. This part has an operating temperature of -40 to 85 °C. It uses the solder termination method. This product is 21 mm long, 8.76 mm tall and 8.31 mm deep.
Chip1Stop:
Conn Cellular Phone Connector PL 16 POS 0.8mm Solder ST SMD 16 Terminal 1 Port Embossed T/R
Verical:
Conn Cellular Phone Connector PL 16 POS 0.8mm Solder ST SMD 16 Terminal 1 Port HandyLink® T/R
Win Source:
CONN PLUG CRADLE 16POS VERT SMD
