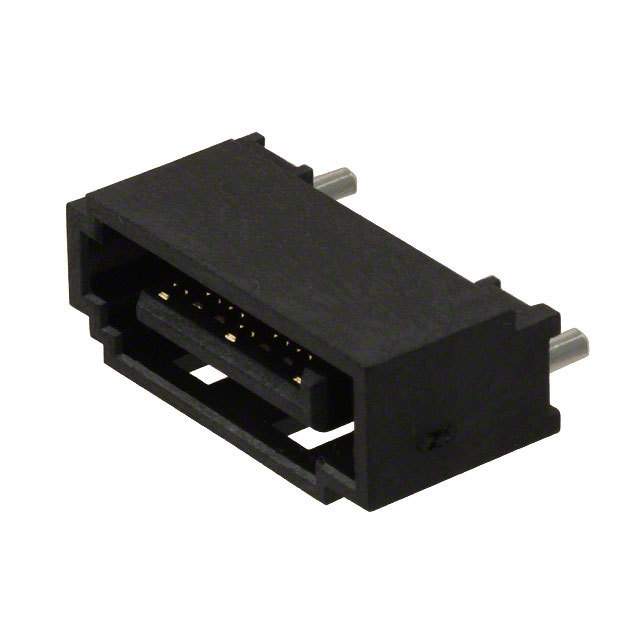

1.27毫米（ .050 “ ）间距串行ATA高速头，垂直，表面贴装， withLocking锁存器， 7电路， 0.38μm （ 15μ ”），金（Au ）镀层，用于2.40毫米（ .094 “ ） PCB， 1.27mm .050" Pitch Serial ATA High Speed Header, Vertical, Surface Mount, withLocking Latch, 7 Circuits, 0.38μm 15μ" Gold Au Plating, for 2.40mm .094" PCB,
7 位置 SATA 接头，有罩 焊接 表面贴装型
得捷:
CONN SATA HEADER 7POS SLD SMD
艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this sata 0678005025 SCSI connector from 0678005025 in order to interface with each other. This PL connector&s;s 7 contacts that are made out of brass and plated with gold over nickel. It has a plug type gender. Its pitch is 1.27 mm. It has a maximum voltage rating of 15 VAC. It has a straight body orientation. This connector has a single port. 0678005025 is housed in thermoplastic. This device has a maximum current rating of 1.5 A/contact. The item will be shipped in tray orientation. Its 7 terminals use the solder termination method. This product is 16.9 mm long, 8.4 mm tall and 6.45 mm deep. This SCSI connector has a minimum operating temperature of -55 °C and a maximum of 85 °C.
安富利:
Conn SATA PL 7 POS 1.27mm Solder ST SMD 7 Terminal 1 Port Tray
Chip1Stop:
Conn SATA PL 7 POS 1.27mm Solder ST SMD 7 Terminal 1 Port Tray
