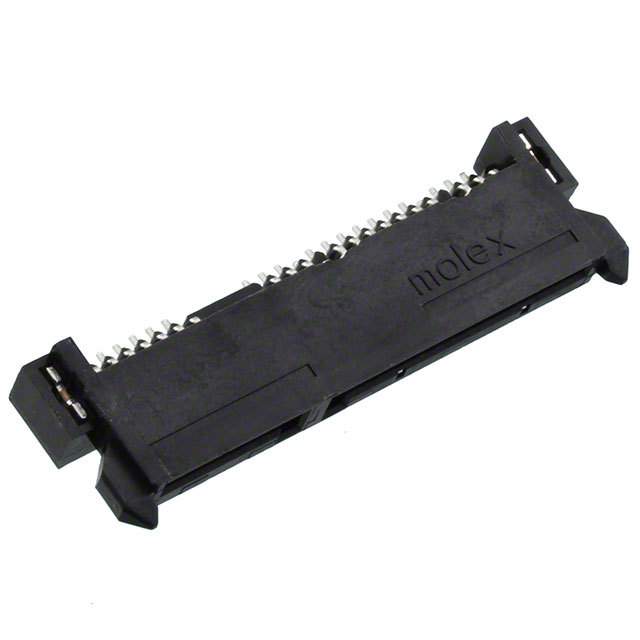

1.27毫米（ .050 “ ）间距串行ATA主机插座，嵌合高度5.15毫米（ .203 ” ） ， 0.76μm （ 30μ “），金（Au ），电镀，光锡焊区，表面贴装，直角，顶部安装类型 1.27mm .050" Pitch Serial ATA Host Receptacle, Mating Height 5.15mm .203",0.76μm 30μ" Gold Au Plating, Light Tin Solder Area, SurfaceMount, Right Angle,Top Mount Type
22 位置 SATA 插座 焊接 表面贴装，直角
得捷:
CONN SATA RCPT 22POS SLD R/A SMD
艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this sata 0470184001 SCSI connector from 0470184001 in order to interface with each other. This RCP connector&s;s 15 power / 7signal contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. It has a receptacle type gender. It has a maximum voltage rating of 15 VDC. Its pitch is 1.27 mm. This device has a maximum current rating of 1.5 A/contact. 0470184001 is housed in thermoplastic. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 40.43 mm long, 10.5 mm tall and 11.17 mm deep. This SCSI connector has a minimum operating temperature of -35 °C and a maximum of 85 °C. Its 22 terminals use the solder termination method.
安富利:
Conn SATA RCP 15Power/7Signal POS 1.27mm Solder RA SMD 22 Terminal 1 Port Tray
Verical:
Conn SATA RCP 22 POS 1.27mm Solder RA SMD 22 Terminal 1 Port Serial ATA T/R
