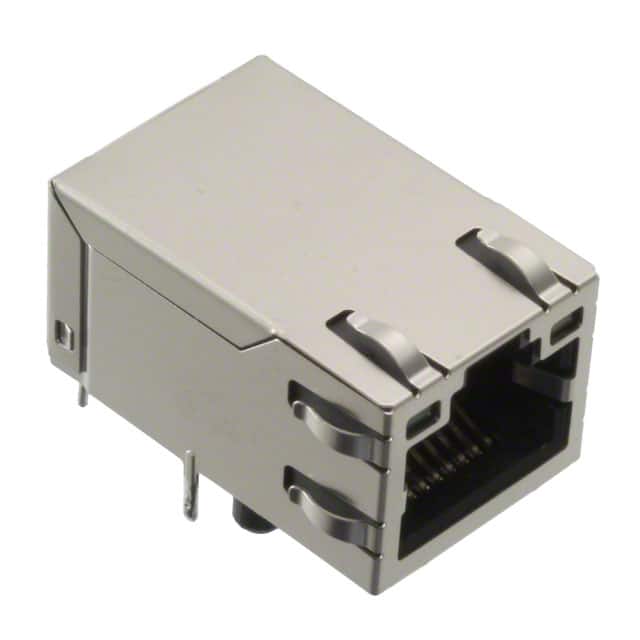

0480254000

Conn Modular Jack F 8POS 2.54mm Solder RA Thru-Hole 8 Terminal 1Port Cat 5

With this modular jack telephone and telecom connector from your connections will always be secure. This F connector"s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 150 VAC. Its pitch is 2.54 mm. This connector has a single port. It has a female type gender. It has a right angle body orientation. This device has a maximum current rating of 1.5 A/contact. This part has an operating temperature of -40 to 70 °C. This product is 18.34 mm long, 14.36 mm tall and 25.4 mm deep. 0480254000 is housed in black polyamide. It uses the solder termination method.
