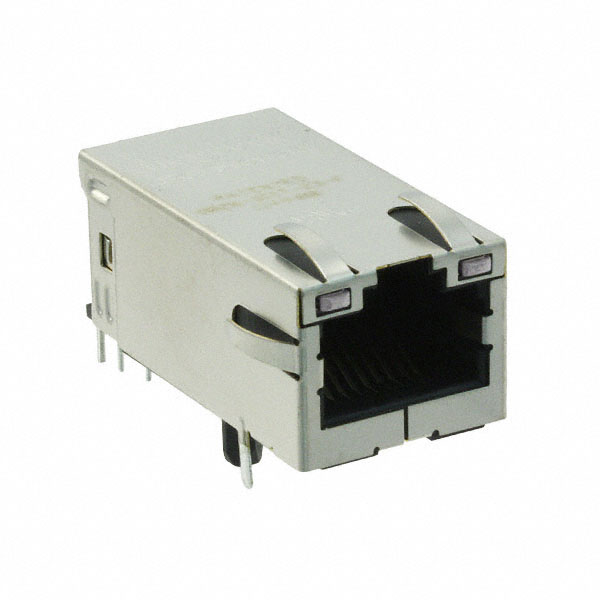

0826-1C1T-23-F

Conn RJ-45F 8POS 2.03mm Solder RA Thru-Hole 16 Terminal 1Port

端口 RJ45通孔 10/100/1000 Base-T，AutoMDIX

得捷:
CONN JACK 1PORT 1000 BASE-T PCB

艾睿:
A secure connection has never been easier to retain with this rj-45 0826-1C1T-23-F telephone and telecom connector from Bel Fuse. This F connector has 8 contacts that are plated with gold. Its pitch is 2.03 mm. It has a right angle body orientation. It has a female type gender. This connector has a single port. 0826-1C1T-23-F is housed in polyamide. This part has an operating temperature of 0 to 70 °C. This product is 19.15 mm long, 15.01 mm tall and 33.02 mm deep. It uses the solder termination method.

Chip1Stop:
Conn RJ-45 Integrated Magnetics F 8 POS 2.03mm Solder RA Thru-Hole 16 Terminal 1 Port

Verical:
Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 16 Terminal 1 Port
