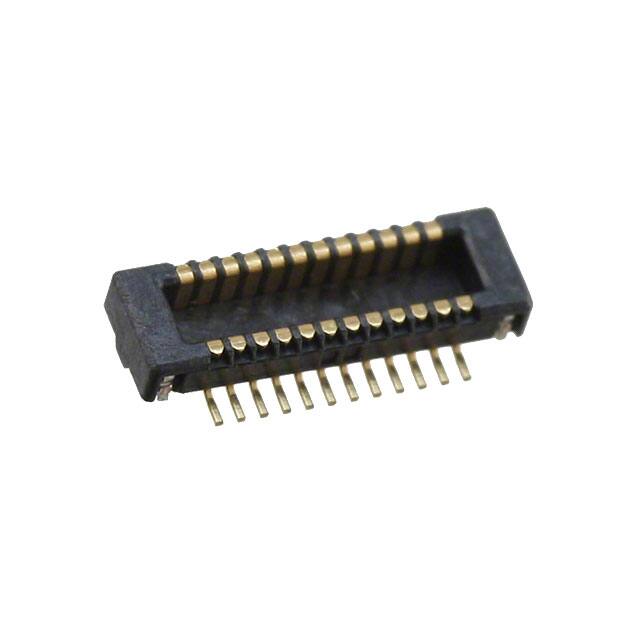

0.40毫米（ 0.016 “ ）间距板对板SlimStack ™插件，表面贴装，双排垂直叠加，无铅， 24电路 0.40mm .016" Pitch Board-to-Board SlimStack™ Plug, Surface Mount, Dual Row Vertical Stacking, Lead-free, 24 Circuits
24 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 24POS SMD GOLD
立创商城:
0559092474
艾睿:
Protect your printed circuit boards from accidental damages with Molex&s;s board to board 0559092474 header connector. This PL connector&s;s 24 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 50 VDC|50VAC. It has a straight body orientation. Its pitch is 0.4 mm. This is a 2-row connector. It has a plug type gender. This device has a maximum current rating of 0.3 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. 0559092474 is housed in black glass filled liquid crystal polymer. This connector has an operating temperature of -25 to 85 °C. It uses the solder termination method. This product is 6.8 mm long, 1.14 mm tall and 2.13 mm deep.
Verical:
Conn Board to Board PL 24 POS 0.4mm Solder ST SMD SlimStack™ T/R
Win Source:
24 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
