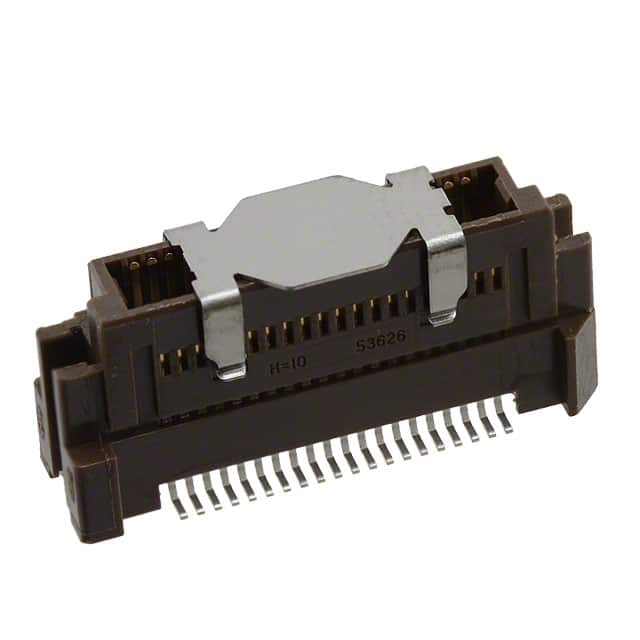

0.635毫米（ 0.025 “ ）间距SlimStack ™接头，表面贴装，双排， VerticaStacking ， 10.00和16.00毫米（ .394和.630 ” ）堆叠高地，无铅， 40Circuits ，以压纹带封面与包装 0.635mm .025" Pitch SlimStack™ Header, Surface Mount, Dual Row, VerticaStacking, 10.00 and 16.00mm .394 and .630" Stacking Heights, Lead-free, 40Circuits, with Embossed Tape with Cover Packaging
40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 40POS SMD GOLD
立创商城:
0536270474
艾睿:
Make strong and binding connections on your circuit boards by adopting this board to board 0536270474 connector from Molex. This HDR connector&s;s 40 contacts that are made out of copper alloy and plated with gold over nickel. It has a header type gender. Its pitch is 0.635 mm. It has a straight body orientation. It has a maximum voltage rating of 100 V. This is a 2-row connector. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It uses the solder termination method. 0536270474 is housed in brown polyphenylene sulfide. This product is 19.57 mm long, 9 mm tall and 5 mm deep. This connector has an operating temperature of -55 to 85 °C.
Verical:
Conn Board to Board HDR 40 POS 0.635mm Solder ST SMD SlimStack™ T/R
