0555600607

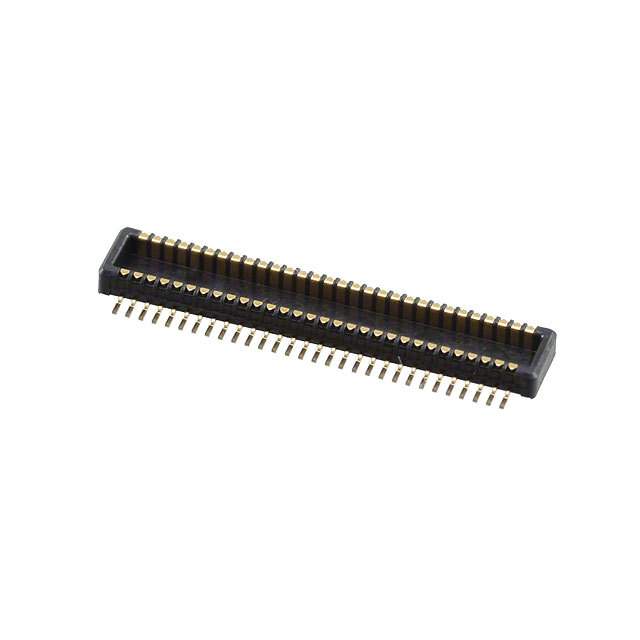

0.50毫米（ 0.020 “ ）间距SlimStack ™插件，表面贴装，双排，垂直， 1.50毫米（ .059 ” ）堆叠高度， 60电路 0.50mm .020" Pitch SlimStack™ Plug, Surface Mount, Dual Row, Vertical, 1.50mm.059" Stack Height, 60 Circuits

60 位置 插头，外罩触点 表面贴装型 镀金

得捷:
CONN PLUG 60POS SMD GOLD

立创商城:
0555600607

艾睿:
This board to board 0555600607 header connector from Molex is used for jumper posts to support physical configuration options on printed circuit boards. This PL connector&s;s 60 contacts that are made out of brass and plated with gold over nickel. Its pitch is 0.5 mm. It has a plug type gender. It has a maximum voltage rating of 50 V. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. 0555600607 is housed in black liquid crystal polymer. It uses the solder termination method. This product is 16.45 mm long, 1.15 mm tall and 4.3 mm deep. This connector has an operating temperature of -25 to 85 °C.

Verical:
Conn Board to Board PL 60 POS 0.5mm Solder ST SMD SlimStack™ T/R

Win Source:
60 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
