CONN PLUG 80POS 20.5MM SMD 0.5MM
80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 80POS SMD GOLD
艾睿:

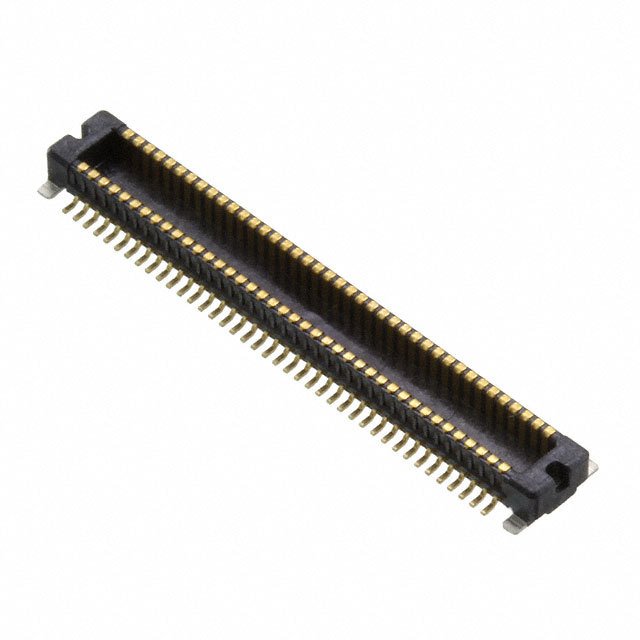

Think of Molex&s;s board to board 0539490878 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 80 contacts that are made out of brass and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 50 V. Its pitch is 0.5 mm. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It uses the solder termination method. This connector has an operating temperature of -40 to 85 °C. 0539490878 is housed in black liquid crystal polymer. This product is 22.75 mm long, 1.48 mm tall and 4.1 mm deep.
Verical:
Conn Board to Board PL 80 POS 0.5mm Solder ST SMD SlimStack™ T/R
Win Source:
80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
