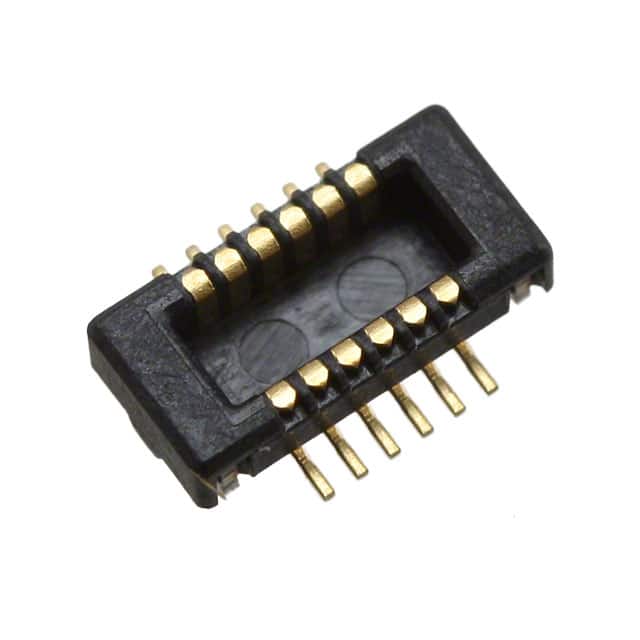

0.40毫米（ 0.016 “ ）间距板对板SlimStack ™插件，表面贴装，双排，垂直叠加， 1.50毫米（ .059 ” ）堆叠高度，无铅， 12电路 0.40mm .016" Pitch Board-to-Board SlimStack™ Plug, Surface Mount, Dual Row,Vertical Stacking, 1.50mm .059" Stacking Height, Lead-free, 12 Circuits
12 位置 插头，外罩触点 表面贴装型 镀金
得捷:
CONN PLUG 12POS SMD GOLD
艾睿:
Use this board to board 0559099974 header connector from Molex where IDC ribbon cables are used. This PL connector&s;s 12 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 50 V. It has a plug type gender. Its pitch is 0.4 mm. This device has a maximum current rating of 0.3 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. 0559099974 is housed in black glass filled liquid crystal polymer. This connector has an operating temperature of -25 to 85 °C. It uses the solder termination method. This product is 4.4 mm long, 1.14 mm tall and 2.13 mm deep.
Verical:
Conn Board to Board PL 12 POS 0.4mm Solder ST SMD SlimStack™ T/R
